À propos du produit

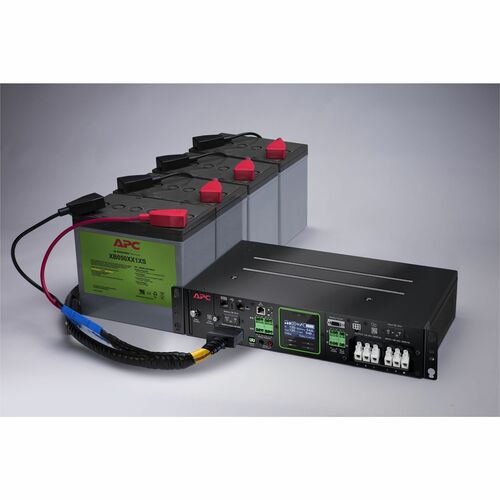

Proven Industrial UPS power protection for control applications and harsh environments.
- Prevent critical data loss by staying powered during a blackout with up to 1.30 kW load capacity
- 1.30 kVA load capacity provides sufficient backup during power failures
Spécifications techniques
| Controls/Indicators | |
| Status Indicators |
|
| Warranty | |
| Additional Warranty Information | 3 years repair or replace |
| Battery Information | |
| Hot Swappable | Yes |
| Battery Characteristics | External Battery System |
| Replaceable Battery | Yes |
| DC System Voltage | 48 V DC |
| Environmental Conditions | |
| Maximum Operating Temperature | 165.2°F (74°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Physical Characteristics | |
| Weight (Approximate) | 22.05 lb (10001.71 g) |
| Form Factor | Rack-mountable |
| Height | 3.46" (88 mm) |
| Width | 17.01" (432 mm) |
| Depth | 10.24" (260 mm) |
| Mounting Preference | No Preference |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | XU1K3LLXXRCC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | SecureUPS 1.3kVA Rack-mountable UPS |
| Product Line | SecureUPS |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Application/Usage | Embedded Controller |
| Industry | |
| Plug/Connector Type | Hard Wire 3 wire (1PH+N+G) |
| Phase | Single Phase |
| Receptacle Type | Hard Wire 3-wire (H N + G) |
| Number of Battery & Surge Outlets | 1 |
| Receptacle Detail | 1 x Hard Wire 3-wire (H N + E) |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 432 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 88 V AC - 148 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 1.30 kVA |
| Load Capacity (Watt) | 1.30 kW |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | CSA |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=XU2K0LLXXRCC_ROHS_DECLARATION&p_FileName=XU2K0LLXXRCCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490327120&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301638&lang=en-us |
| REACH free of SVHC | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
