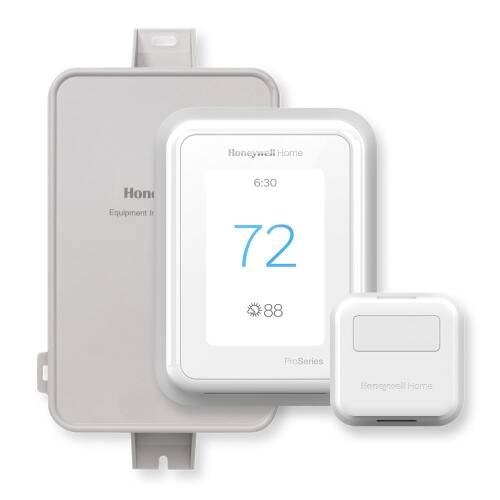

The Honeywell T10+ Pro Smart Thermostat Kit with EIM and Sensors is an ENERGY STAR® certified smart thermostat kit that enables custom heating/cooling for individual rooms, along with a host of remote control and monitoring options. Designed for multi-stage heat & cool systems: including up to 4H/2C Heat Pump or 3H/2C Conventional (with EIM); gas, oil, electric, steam / gravity systems and dual fuel.
With the Honeywell Resideo App, users can remotely check-in on room temperatures, adjust scheduling and enable geofencing for automatic on/off when end-users come and go. Customizable room control via included RedLINK sensors prioritizes heat and cooling in individual rooms as opposed to the entire system, allowing users to integrate independent devices like humidifiers/dehumidifiers, ventilation and other climate control products without extensive re-wiring.
Additional features like smart alerting and adaptive learning sends alerts for critical temperatures and filter changes while automatically adjusting heating/cooling cycles to maximize comfort and HVAC system uptime.
Up to 20 unique RedLINK sensors can be added to a single thermostat, including wireless outdoor temperature and humidity sensors, wired indoor sensors, wired outdoor sensors and floor slab sensors. Each wireless RedLINK sensor has an effective 200' distance indoors, and up to 1200' line-of-sight outdoors.

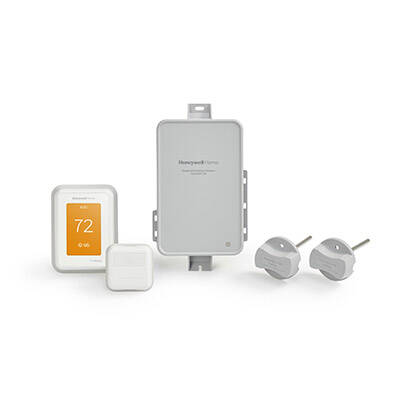

Package includes thermostat, EIM, Return & supply sensors, UWP mounting system, cover plate, mounting hardware, & wireless indoor sensor.
YTHM1004R3000 Specs and Features
- Compatibility: 24 Vac systems, up to 3H/2C heat pump or 2H/2C conventional. Gas, Oil, Electric, Steam / Gravity Systems & dual fuel
- Dimensions (in.):
- Thermostat 4.9"" H x 3.7"" W x 0.93"" D (125.4mm x 94.1mm x 23.68mm)
- EIM 9-5/16"" x 4-13/16"" x 1-19/32"" (91 x 147 x 42 mm)
- Package Includes: Thermostat, EIM, Return & supply sensors, UWP mounting system, cover plate, mounting hardware, & wireless indoor sensor
- Mounting: UWP Mounting System for thermostat. EIM to wall, stud, or return duct
- Electrical Ratings: 20 to 30 Vac
- Frequency: 50 Hz; 60 Hz
- Stages: Up to 3 Heat/2 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems
- Electrical Connections: UWP Mounting System for R and C at thermostat. Screw terminals on EIM to HVAC
- Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
- Supply Voltage: 20 to 30 Vac
- Switch Positions (System): HEAT-OFF-COOL-AUTO-EM HEAT
- Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
- Operating Temperature Range (C): 2.7°C to 39°C (37°F to 102°F)
- Shipping and Storage Temperature Range (C): -28.9°C to 48.9°C (- 20°F to 120°F)
- Approvals, Federal Communications Commission FCC: 47 CFR § 15.19 (a)(3), 47 CFR § 15.21 (USA only), & 47 CFR § 15.105 (b). IC REGULATIONS: RSS-GEN
- Network Communications: Wi-Fi
- Power Method: Hardwired
- Ambient Temperature Range (C): 0°C to 50°C (32°F to 120°F)
- Color: Thermostat White, EIM grey
- Display: Touch screen
- Switch Type: Relay
- Programmability: 7 day, 5-1-1 day, 5-2 day, 1 week, or Non-programmable. Can use sensors for priority scheduling
- Terminal Designations: EIM (R, Rh, Rc, C, L, O/B, W1, W2-AUX 1, W3-AUX 2, Y1, Y2, G, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4)
- Display Size: 7.27 sq. in.
- Temperature Control Mode Selections: Ambient Air Temperature
- Changeover: Auto or Manual
- Setting Temperature Range (C)
- Heat: 4.5°C to 32.0°C (40°F to 90°F)
- Cool: 10°C to 37.0°C (50°F to 99°F)
- Humidification Setting Range: 0% to 90% RH
- Dehumidification Setting Range: 10% to 100% RH
- Cool Current: 0.02 A to 1.0 A running
- Heat Current: 0.02-1.0 A
- Fan Current: 0.02-.05 A
Spécifications techniques
The Honeywell T10+ Pro Smart Thermostat Kit with EIM and Sensors is an ENERGY STAR® certified smart thermostat kit that enables custom heating/cooling for individual rooms, along with a host of remote control and monitoring options. Designed for multi-stage heat & cool systems: including up to 4H/2C Heat Pump or 3H/2C Conventional (with EIM); gas, oil, electric, steam / gravity systems and dual fuel.
With the Honeywell Resideo App, users can remotely check-in on room temperatures, adjust scheduling and enable geofencing for automatic on/off when end-users come and go. Customizable room control via included RedLINK sensors prioritizes heat and cooling in individual rooms as opposed to the entire system, allowing users to integrate independent devices like humidifiers/dehumidifiers, ventilation and other climate control products without extensive re-wiring.
Additional features like smart alerting and adaptive learning sends alerts for critical temperatures and filter changes while automatically adjusting heating/cooling cycles to maximize comfort and HVAC system uptime.
Up to 20 unique RedLINK sensors can be added to a single thermostat, including wireless outdoor temperature and humidity sensors, wired indoor sensors, wired outdoor sensors and floor slab sensors. Each wireless RedLINK sensor has an effective 200' distance indoors, and up to 1200' line-of-sight outdoors.
Package includes thermostat, EIM, Return & supply sensors, UWP mounting system, cover plate, mounting hardware, & wireless indoor sensor.
YTHM1004R3000 Specs and Features
- Compatibility: 24 Vac systems, up to 3H/2C heat pump or 2H/2C conventional. Gas, Oil, Electric, Steam / Gravity Systems & dual fuel
- Dimensions (in.):
- Thermostat 4.9"" H x 3.7"" W x 0.93"" D (125.4mm x 94.1mm x 23.68mm)
- EIM 9-5/16"" x 4-13/16"" x 1-19/32"" (91 x 147 x 42 mm)
- Package Includes: Thermostat, EIM, Return & supply sensors, UWP mounting system, cover plate, mounting hardware, & wireless indoor sensor
- Mounting: UWP Mounting System for thermostat. EIM to wall, stud, or return duct
- Electrical Ratings: 20 to 30 Vac
- Frequency: 50 Hz; 60 Hz
- Stages: Up to 3 Heat/2 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems
- Electrical Connections: UWP Mounting System for R and C at thermostat. Screw terminals on EIM to HVAC
- Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
- Supply Voltage: 20 to 30 Vac
- Switch Positions (System): HEAT-OFF-COOL-AUTO-EM HEAT
- Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
- Operating Temperature Range (C): 2.7°C to 39°C (37°F to 102°F)
- Shipping and Storage Temperature Range (C): -28.9°C to 48.9°C (- 20°F to 120°F)
- Approvals, Federal Communications Commission FCC: 47 CFR § 15.19 (a)(3), 47 CFR § 15.21 (USA only), & 47 CFR § 15.105 (b). IC REGULATIONS: RSS-GEN
- Network Communications: Wi-Fi
- Power Method: Hardwired
- Ambient Temperature Range (C): 0°C to 50°C (32°F to 120°F)
- Color: Thermostat White, EIM grey
- Display: Touch screen
- Switch Type: Relay
- Programmability: 7 day, 5-1-1 day, 5-2 day, 1 week, or Non-programmable. Can use sensors for priority scheduling
- Terminal Designations: EIM (R, Rh, Rc, C, L, O/B, W1, W2-AUX 1, W3-AUX 2, Y1, Y2, G, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4)
- Display Size: 7.27 sq. in.
- Temperature Control Mode Selections: Ambient Air Temperature
- Changeover: Auto or Manual
- Setting Temperature Range (C)
- Heat: 4.5°C to 32.0°C (40°F to 90°F)
- Cool: 10°C to 37.0°C (50°F to 99°F)
- Humidification Setting Range: 0% to 90% RH
- Dehumidification Setting Range: 10% to 100% RH
- Cool Current: 0.02 A to 1.0 A running
- Heat Current: 0.02-1.0 A
- Fan Current: 0.02-.05 A
