About the product

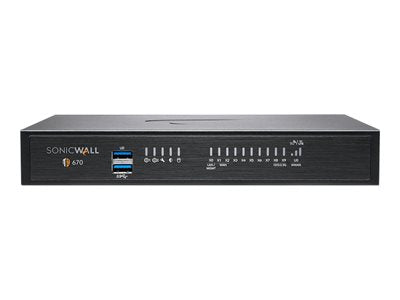

The SonicWall TZ670 is a desktop-form-factor next-generation firewall (NGFW) with 10 Gigabit Ethernet interfaces.
Designed for mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ670 delivers industry-validated security effectiveness with best-in-class price-performance. TZ670 NGFWs address the growing trends in web encryption, connected devices and high-speed mobility by delivering a solution that meets the need for automated, real-time breach detection and prevention.
The TZ670 is highly scalable and features both in-built and an expandable storage of up to 256GB that enables various features including logging, reporting, caching, firmware backup and more.
Deployment of TZ670 is further simplified by Zero-Touch Deployment, with the ability to simultaneously roll out these devices across multiple locations with minimal IT support. Built on next-gen hardware, it integrates firewalling and switching capabilities, plus provides single-pane-of-glass management for SonicWall Switches and SonicWave Access Points.
Technical Specifications
| Primary Information | |
| Product Description: | SonicWall TZ670 - security appliance |
| Device Type: | Security appliance |
| Form Factor: | Desktop |
| Hard Drive: | 32 GB x 1 |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance: | Firewall throughput: 5 Gbps ¦ Threat prevention throughput: 2.5 Gbps ¦ Application throughput: 3 Gbps ¦ IPS throughput: 3 Gbps ¦ Anti-malware throughput: 2.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 800 Mbps ¦ VPN throughput (IPSec): 2.1 Gbps ¦ Connection rate: 25000 connections per second |
| Capacity: | Virtual interfaces (VLANs): 256 ¦ SSL VPN licenses: 2 (maximum 250) ¦ VPN tunnels (site-to-site): 250 ¦ IPSec VPN clients: 10 (maximum 500) ¦ SPI connections: 1500000 ¦ DPI connections: 500000 ¦ DPI SSL connections: 75000 ¦ Single Sign-On (SSO) users: 2500 ¦ Manageable access points: 32 |
| VoIP Protocols: | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Power: | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH): | 8.9 in x 5.9 in x 1.4 in |
| Weight: | 34.21 oz |
| General | |
| Device Type: | Security appliance |
| Width: | 8.9 in |
| Depth: | 5.9 in |
| Height: | 1.4 in |
| Weight: | 34.21 oz |
| Processor / Memory / Storage | |
| Hard Drive: | SSD 32 GB x 1 |
| Networking | |
| Form Factor: | Desktop |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol: | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Remote Management Protocol: | SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH |
| Performance: | Firewall throughput: 5 Gbps ¦ Threat prevention throughput: 2.5 Gbps ¦ Application throughput: 3 Gbps ¦ IPS throughput: 3 Gbps ¦ Anti-malware throughput: 2.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 800 Mbps ¦ VPN throughput (IPSec): 2.1 Gbps ¦ Connection rate: 25000 connections per second |
| Capacity: | Virtual interfaces (VLANs): 256 ¦ SSL VPN licenses: 2 (maximum 250) ¦ VPN tunnels (site-to-site): 250 ¦ IPSec VPN clients: 10 (maximum 500) ¦ SPI connections: 1500000 ¦ DPI connections: 500000 ¦ DPI SSL connections: 75000 ¦ Single Sign-On (SSO) users: 2500 ¦ Manageable access points: 32 |
| Features: | SD-WAN support, VLAN support, firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), content filtering, antivirus analysis, anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, port mirroring, bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 3G/4G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention |
| Encryption Algorithm: | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method: | RADIUS, LDAP, XAUTH authentication |
| IP Telephony | |
| VoIP Protocols: | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Expansion / Connectivity | |
| Interfaces: | 6 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 2 x network - SFP+ ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x console - micro-USB |
| Miscellaneous | |
| MTBF: | 43.9 years |
| Compliant Standards: | FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, WEEE, REACH, BSMI, KCC, MSIP, ANATEL |
