About the product
Flair's High Power Magnetic Contacts specializes in SPDT electrical configurations up to 3 Amps and 500 VDC. These contacts are perfectly suitable to control some lights. With features like resistance to the harsh environment, high power rating, and lifetime warranty, all the products are easy to customize according to one's needs.

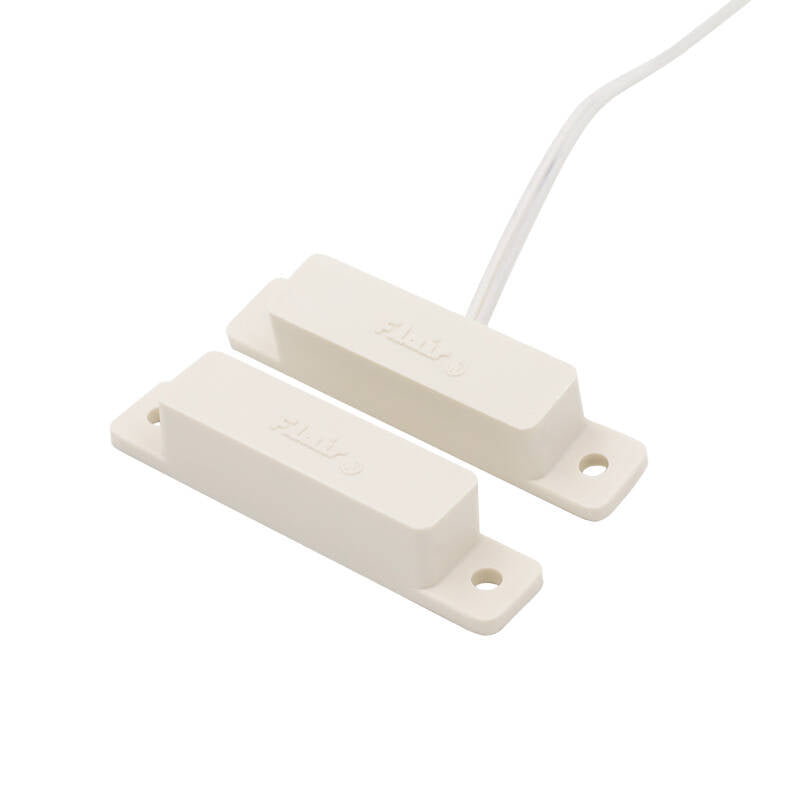

Flair High Power Surface Mount Magnetic Contact, 3"" Gap, Form C, 12"" Jacketed Features:
- 2 1/2” Long Screw Mount Magnetic Contact
- High Power Rating
- Three Wire, SPDT Configuration
- 12” Center Jacketed Leads
- Epoxy sealed for maximum resistance to the harsh environment
- E.O.L. Resistors, Diodes, and Supervisory Loops Available
- Lifetime Warranty
Flair High Power Surface Mount Magnetic Contact, 3"" Gap, Form C, 12"" Jacketed Specifications:
- Part Number: 1000-26S-634
- Color: White
- Electric Rating: 120V / 3A
- Gap: 3
- Lead Length: 12? Jacketed Wire Leads
- Loop Type (with magnet present): Open / Closed
- Size: 1/2? H x 2-1/2? L
Technical Specifications
Flair's High Power Magnetic Contacts specializes in SPDT electrical configurations up to 3 Amps and 500 VDC. These contacts are perfectly suitable to control some lights. With features like resistance to the harsh environment, high power rating, and lifetime warranty, all the products are easy to customize according to one's needs.
Flair High Power Surface Mount Magnetic Contact, 3"" Gap, Form C, 12"" Jacketed Features:
- 2 1/2” Long Screw Mount Magnetic Contact
- High Power Rating
- Three Wire, SPDT Configuration
- 12” Center Jacketed Leads
- Epoxy sealed for maximum resistance to the harsh environment
- E.O.L. Resistors, Diodes, and Supervisory Loops Available
- Lifetime Warranty
Flair High Power Surface Mount Magnetic Contact, 3"" Gap, Form C, 12"" Jacketed Specifications:
- Part Number: 1000-26S-634
- Color: White
- Electric Rating: 120V / 3A
- Gap: 3
- Lead Length: 12? Jacketed Wire Leads
- Loop Type (with magnet present): Open / Closed
- Size: 1/2? H x 2-1/2? L
