About the product

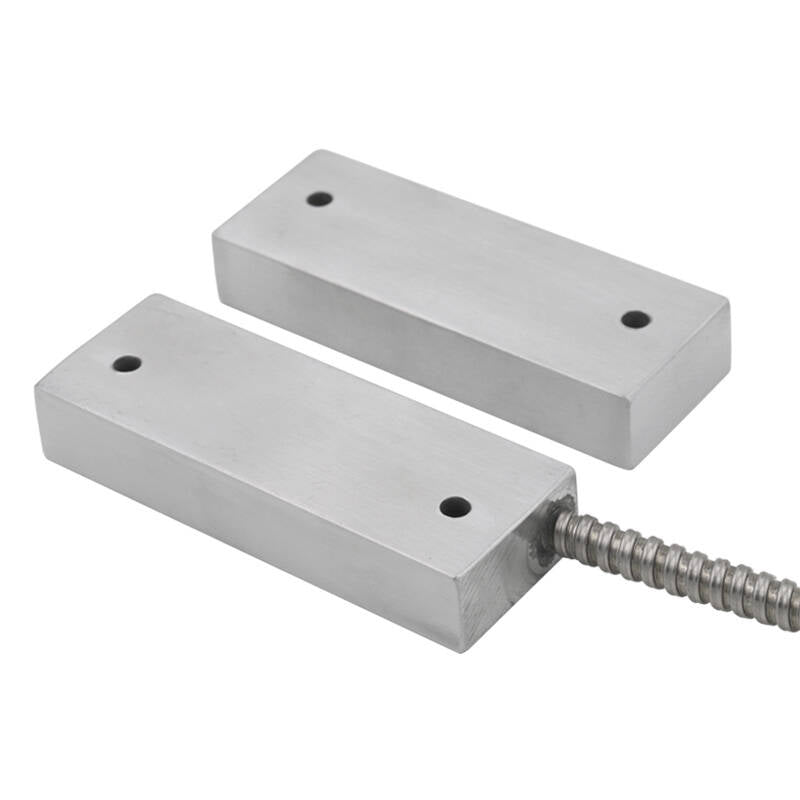

The Flair 1000-64 Surface Mounted Heavy-Duty Aluminum Magnetic Contact is an Open/Closed (SPDT) magnetic contact with a 3’’ operating gap. Solid aluminum casing prevents contact deterioration, and the 18’’ armored cable with #22AWG wiring is epoxy sealed for maximum resistance to water ingress and false alarms. Rated for 30VAC/VDC @ 20mA (3W). Ideal for garage doors, shutters, rolling bays, and more.
1000-64 Specs and Features
- 3 ½’’ Heavy-Duty Magnetic Contact (Switch and Magnet)
- Solid aluminum construction with epoxy sealed electronics
- Open/Closed loop, SPDT electrical configuration
- 3’’ operating gap
- 3W maximum contact rating (max 30VAC/VDC @ 20mA)
- Pre-drilled screw mounting holes
- Dimensions: 5/8’’ H x 1 ¼’’ W x 3 ½’’ L
Technical Specifications
The Flair 1000-64 Surface Mounted Heavy-Duty Aluminum Magnetic Contact is an Open/Closed (SPDT) magnetic contact with a 3’’ operating gap. Solid aluminum casing prevents contact deterioration, and the 18’’ armored cable with #22AWG wiring is epoxy sealed for maximum resistance to water ingress and false alarms. Rated for 30VAC/VDC @ 20mA (3W). Ideal for garage doors, shutters, rolling bays, and more.
1000-64 Specs and Features
- 3 ½’’ Heavy-Duty Magnetic Contact (Switch and Magnet)
- Solid aluminum construction with epoxy sealed electronics
- Open/Closed loop, SPDT electrical configuration
- 3’’ operating gap
- 3W maximum contact rating (max 30VAC/VDC @ 20mA)
- Pre-drilled screw mounting holes
- Dimensions: 5/8’’ H x 1 ¼’’ W x 3 ½’’ L
