About the product
Flair's High Power Magnetic Contacts specializes in SPDT electrical configurations up to 3 Amps and 500 VDC. These contacts are perfectly suitable to control some lights. With features like resistance to the harsh environment, high power rating, and lifetime warranty, all the products are easy to customize according to one's needs.

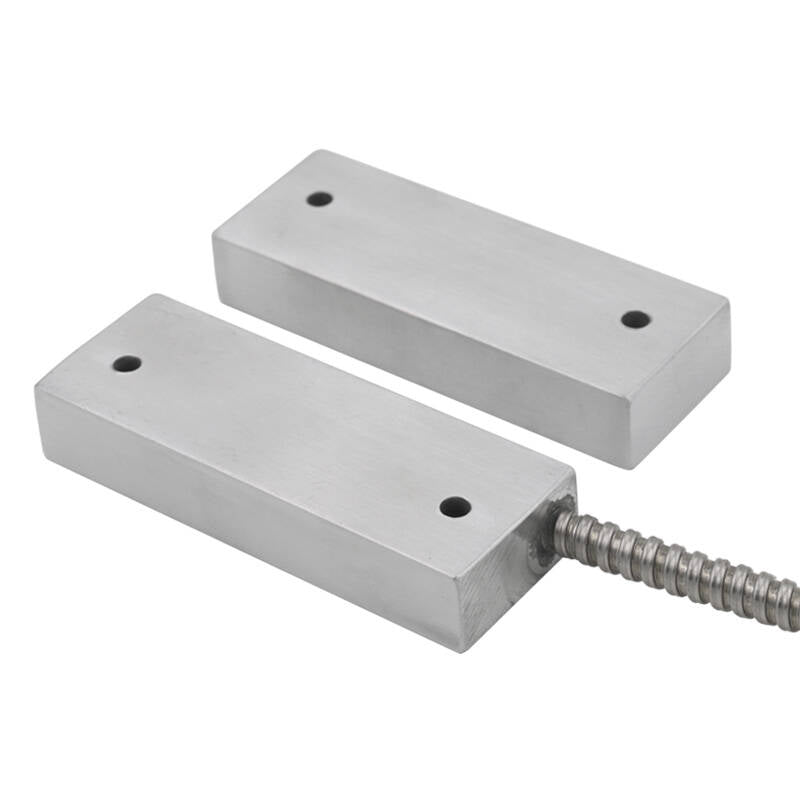

Flair High Power Magnetic Contact, 3"" Gap, 18"" Armored Cable, 120V Features:
- 3 1/2” Heavy Duty Magnetic Contact
- High Power Rating
- Three Wire, SPDT Configuration
- Solid Aluminum Case
- 18” Armored Cable
- Epoxy Sealed for maximum resistance to harsh environments
- E.O.L. Resistors, Diodes, Supervisory Loops, and Private Labeling Available
- Lifetime warranty
Flair High Power Magnetic Contact, 3"" Gap, 18"" Armored Cable, 120V Specifications:
- Part Number: 1000-66-834
- Color: Solid Aluminum
- Gap: 3
- Lead Length: 18? Armored Cable
- Loop Type (with magnet present): Open / Closed
- Operating Voltage: 500V
- Power: 3A
- Size: 5/8? W x 1 1/4? H x 3 1/2? L
Technical Specifications
Flair's High Power Magnetic Contacts specializes in SPDT electrical configurations up to 3 Amps and 500 VDC. These contacts are perfectly suitable to control some lights. With features like resistance to the harsh environment, high power rating, and lifetime warranty, all the products are easy to customize according to one's needs.
Flair High Power Magnetic Contact, 3"" Gap, 18"" Armored Cable, 120V Features:
- 3 1/2” Heavy Duty Magnetic Contact
- High Power Rating
- Three Wire, SPDT Configuration
- Solid Aluminum Case
- 18” Armored Cable
- Epoxy Sealed for maximum resistance to harsh environments
- E.O.L. Resistors, Diodes, Supervisory Loops, and Private Labeling Available
- Lifetime warranty
Flair High Power Magnetic Contact, 3"" Gap, 18"" Armored Cable, 120V Specifications:
- Part Number: 1000-66-834
- Color: Solid Aluminum
- Gap: 3
- Lead Length: 18? Armored Cable
- Loop Type (with magnet present): Open / Closed
- Operating Voltage: 500V
- Power: 3A
- Size: 5/8? W x 1 1/4? H x 3 1/2? L
