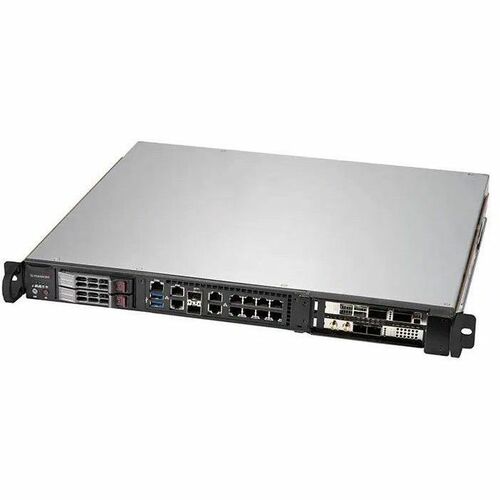

Supermicro SuperServer 1019D-16C-FHN13TP Server Barebone System - 1U Rack

Name: Supermicro SuperServer 1019D-16C-FHN13TP Server Barebone System - 1U Rack
Brand: Super Micro
SKU: 770A1HCM
Price: 5267.76 CAD
Availability: OutOfStock

$5,267.76 CAD

~~$5,899.89 CAD~~ $5,267.76 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Supermicro SuperServer 1019D-16C-FHN13TP Server Barebone System - 1U Rack-mountable - 1 x Processor Support - 1 Xeon D-2183IT 2.20 GHz Hexadeca-core (16 Core) - Intel Chip - 512 GB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - 4 Total Memory Slots - Serial ATA/600 Controller - AST2500 Graphic(s) - Network (RJ-45) - 3 M.2 Interface(s) - 4 SATA Interface(s) - 10 Gigabit Ethernet, Gigabit Ethernet - 2 USB 3.0 Port(s) - 1 x 500 W - 1 Year

VPN:1019D-16C-FHN13TPSKU:770A1HCM UPC:

Intel® Xeon® D-2183IT Processor, 16-Core, 32 Threads, 2.2 GHz, 100W
Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
2 PCI-E 3.0 x16 (FHFL) slots

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Supermicro SuperServer 1019D-16C-FHN13TP Server Barebone System - 1U Rack

About the product

Intel® Xeon® D-2183IT Processor, 16-Core, 32 Threads, 2.2 GHz, 100W

Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots

2 PCI-E 3.0 x16 (FHFL) slots

2 Hot-swap 2.5" drive bays, 2 Internal 2.5" SSD bays

1 M-Key, 2280/22110, 1 E-Key, 2230, 1 B-Key, 3042

9 GbE (1 port is used for management), 2x 10GbE, 2x 10G SFP+, and 1 Dedicated IPMI LAN ports

2 USB 3.0, 1 VGA, 1 COM via RJ45

500W Multi-output Platinum Level Power Supply

Technical Specifications

Chipset
Chipset Manufacturer	Intel
Controllers
Controller Type	Serial ATA/600
Display & Graphics
Graphics Controller Model	AST2500
Storage
Supported Storage Drive Interfaces	Serial ATA III
Network & Communication
Ethernet Technology	Gigabit Ethernet
	10 Gigabit Ethernet
Miscellaneous
Package Contents	SuperServer 1019D-16C-FHN13TP 1 x Super X11SDW-16C-TP13F Motherboard 1 x 1U Chassis 1 x 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD 2 x SATA,INT,ROUND,ST-ST,21CM,30AWG 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG 1 x CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS 2 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH 1 x 1U I/O Shield for X11SDW with EMI Gasket, Black 1 x Mylar Air shroud for SC513B + UP MB X11SDW 1 x 1U LHS WIO Riser card with two PCI-E x16 slots 1 x 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH 1 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) 1 x CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG 4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH 2 x 2.5\" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket) 1 x 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black 1 x SC809 FRONT CONTROL PANEL ASSY 1 x Outer rail, quick-release type, 25.6\" to 33.05\" 1 x Inner rail, front, short (quick) for 1U 17.2 1 x Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12\"x10.15\") 2 x Dummy fan 40x28mm
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
I/O Expansions
Number of Total Expansion Bays	2
Number of PCI Express x16 Slots	2
Total Number of Expansion Slots	2
Number of M.2 Interfaces	3
Memory
Maximum Memory Supported	512 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2400/PC4-19200
Total Number of Memory Slots	4
Interfaces/Ports
Number of SATA Interfaces	4
VGA	Yes
Number of Network (RJ-45) Ports	14
Network (RJ-45)	Yes
Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Number of VGA Ports	1
Power Description
Input Voltage	120 V AC
	230 V AC
Frequency	50 Hz
	60 Hz
Thermal Design Power	100 W
Number of Power Supplies Installed	1
Maximum Power Supply Wattage	500 W
Processor
Processor Speed	2.20 GHz
Processor Type	Xeon
Processor Model	D-2183IT
Processor Core	Hexadeca-core (16 Core)
64-bit Processing	Yes
Number of Processors Supported	1
Number of Processors Installed	1
General Information
Product Type	Server Barebone System
Manufacturer Part Number	1019D16CFHN13TP
Manufacturer Website Address	http://www.supermicro.com
Manufacturer	Supermicro Computer, Inc
Product Model	1019D-16C-FHN13TP
Product Name	SuperServer 1019D-16C-FHN13TP
Product Line	SuperServer
Brand Name	Supermicro
Physical Characteristics
Weight (Approximate)	14 lb (6350.29 g)
Form Factor	Rack-mountable
Rack Height	1U
Height	1.70" (43.18 mm)
Width	17.20" (436.88 mm)
Depth	15" (381 mm)
Product Color	Black
Color Family	Black
