About the product

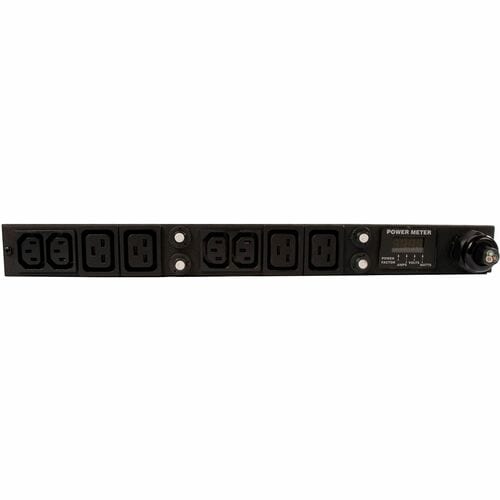

Metered rPDUs deliver reliable power to critical IT equipment within a rack or cabinet. Includes a local LED display to view real-time power data.
Benefits
- Avoid accidental overloads when deploying or moving critical server equipment with instant access to power consumption metrics on the local digital display.
- The local LED display provides real-time power data for instant feedback when deploying or moving critical IT equipment.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
- PDU provides active metering enabling energy optimization and circuit protection
- Monitor load level efficiently with PDU meter
Technical Specifications
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Environmental Conditions | |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 4.90 kW |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Server Rack/Cabinet | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | 11383VH |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | VRELCN080-103I44TL6 |
| Product Name | rPDU VRELCN080-103I44TL6 8-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Form Factor | Horizontal/Vertical |
| Length | 17" (431.80 mm) |
| Mount Type | Cabinet-mountable |
| Rack-mountable | |
| Cord Length | 10 ft (3.05 m) |
| Width | 1.72" (43.69 mm) |
| Depth | 1.85" (46.99 mm) |
| Mounting Orientation | Horizontal/Vertical |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Technical Information | |
| Features | LED Display |
| Protection Type | Overcurrent Protection |
| Thermal Protection | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Metered |
| Receptacle Detail | 4 x IEC 60320 C19 |
| 4 x IEC 60320 C13 | |
| Plug/Connector Detail | 1 x NEMA L6-30P |
