About the product

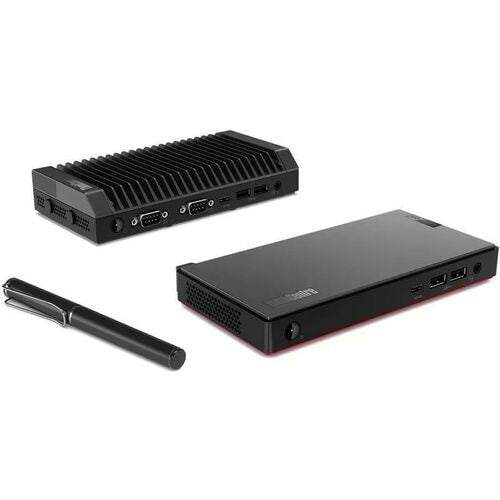

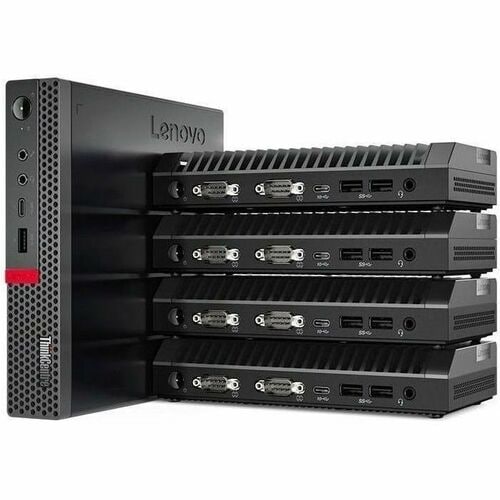

M Nano Series | Incredibly compact, incredibly versatile.
? Small, thin, and big on performance, the M Nano Series has built-in enhanced security, durability, and energy efficiency features. From retail to manufacturing, these powerful nano PCs can be used in different ways-mounted on a wall, tapped into the Internet of Things, or as a portable desktop.
- Intel UHD Graphics shared graphic card for lag-free and smooth performance
- Intel Core i5 1.60 GHz processor provides you the solid performance to watch videos, play games, and on the same node its adaptability makes you more productive
- 8 GB memory is ready to run powerful programs with efficient multitasking
- 256 GB SSD keeps your running programs active while your computer resumes from suspension in seconds
- It's Windows 10 IoT Enterprise 2019 LTSC operating system offers powerful platform to efficiently run routine applications
Technical Specifications
| Chipset | |
| Chipset Manufacturer | Intel |
| Input Devices | |
| Keyboard Localization | English |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Technical Information | |
| Release Year | 2024 |
| Warranty | |
| Additional Warranty Information | 1-year, Onsite |
| Memory | |
| Standard Memory | 8 GB |
| Memory Speed | 2666 MHz |
| Memory Technology | DDR4 SDRAM |
| Operating System | |
| Operating System | Windows 10 IoT Enterprise 2019 LTSC |
| Operating System Platform | Windows |
| Operating System Language | English |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Storage | |
| Drive Type | SSD |
| Solid State Drive Interface | PCI Express NVMe 3.0 x4 |
| Total Solid State Drive Capacity | 256 GB |
| SSD Form Factor | M.2 |
| Physical Characteristics | |
| Weight (Approximate) | 1.59 lb (720 g) |
| Form Factor | Nano |
| Height | 1.36" (34.50 mm) |
| Width | 7.05" (179 mm) |
| Depth | 3.46" (88 mm) |
| Product Color | Black |
| Color Family | Black |

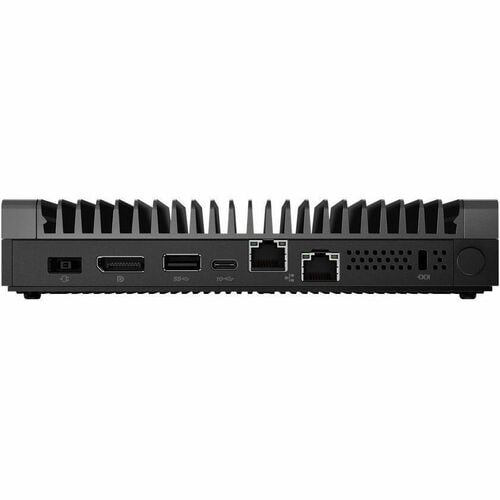

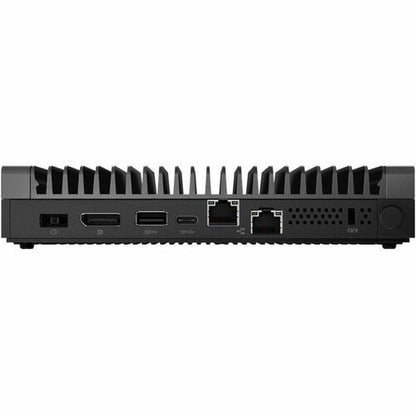

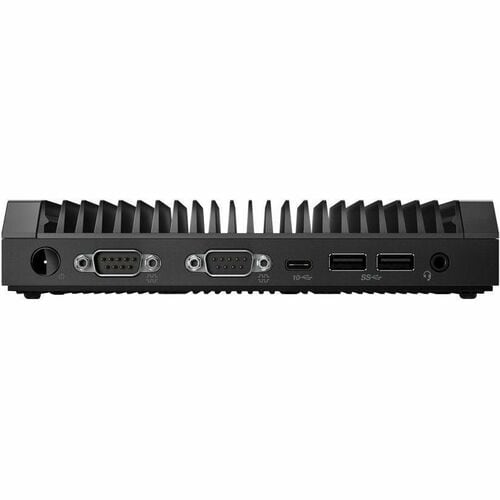

| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number Of Ethernet Ports | 2 |
| USB Type-C Detail | Front : 1x USB-C® 3.2 Gen 2, Rear: 1x USB-C® 3.2 Gen 2 (support display function and powerin [20V and >45W]) |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| Number of DisplayPort Outputs (Rear) | 1 |
| DisplayPort (Rear) | Yes |
| Number of USB 3.2 Gen 2 Ports | 3 |

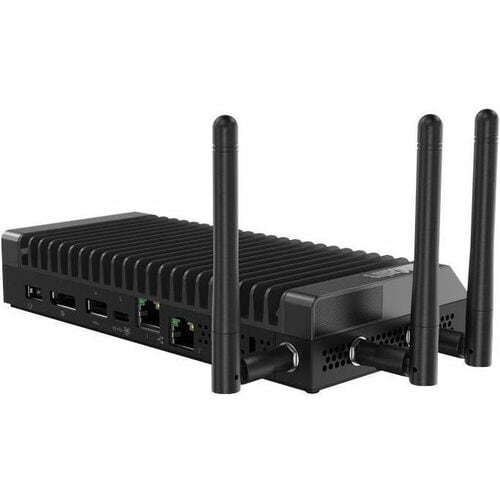

| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Ethernet Technology | Gigabit Ethernet |
| LAN Manufacturer | Realtek |
| Intel | |
| LAN Model | I219-LM |
| RTL8111H | |
| Processor | |
| Processor Speed | 1.60 GHz |
| Processor Type | Core i5 |
| Processor Model | i5-8365U |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Maximum Turbo Speed | 4.10 GHz |
| Processor Generation | 8th Gen |
| Processor Threads | 8 |
| General Information | |
| Product Type | Desktop Computer |
| Manufacturer Part Number | 11AM001YUS |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 11AM001YUS |
| Product Name | ThinkCentre M90n-1 Nano IoT 11AM001YUS |
| Product Line | ThinkCentre |
| Product Series | M90n-1 Nano IoT |
| Brand Name | Lenovo |
| Miscellaneous | |
| Package Contents |
|
| Features | Security Slot |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
| TCO Certified 8.0 | |
| Energy Star | Yes |
| TCO Certified | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Systems Management | Intel vPro |
