About the product

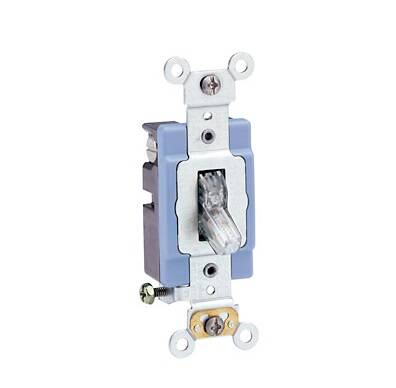

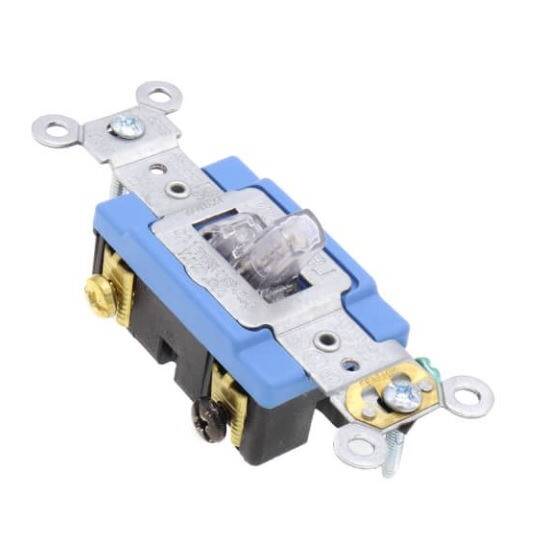

The Leviton 120V 15A illuminated industrial-grade AC toggle switch is a self-grounding single-pole AC toggle switch with built-in pilot light illuminator. Features a clear polycarbonate toggle and solid thermoplastic body construction with quiet toggle. The illuminated toggle indicates a live circuit; ideal for ensuring connected equipment like motors or fans aren’t left on accidentally. Perfect for shared bathrooms, quick circuit shutoffs in industrial environments, workshops, and more.
Convenient back or side wiring option using screw terminals allows for no-hassle installation. Copper or copper-clad wiring only; side-wiring accepts up to 12 AWG, back wiring accepts up to 10 AWG gauge wiring. Rugged, fully-enclosed switch mechanism ensures a minimum of 50,000 cycles. 15A max, withstands 1500V dielectric voltage for 1 minute, and up to 10 cycles of OL at 4.8 times rated current. Supports connected AC motors (1/2 HP @ 120V) up to 12 amps.
1201-PLC Specs and Features
- Clear, polycarbonate toggle switch with illuminated pilot light when circuit is ‘ON’
- Single-pole, 120VAC @ 15A
- Side or back wiring options, brass 8-32; back wiring #14-10 AWG, side wiring #14-12 AWG accepted
- Extra heavy-duty industrial grade construction for reliable repetitive toggling of connected AC loads
- Supports 120V AC motors up to 12A
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -40°C to 65°C
- Certifications
- ANSI: C-73
- CSA C22.2 No. 111: File #152105
- NEMA: WD-1 & WD-6
- NOM: 057
- RoHS: Compliant
- UL Fed Spec WS896E: File #E7458
- UL Standard: UL 20
- Warranty: 10-Year Limited Manufacturer’s Warranty
Technical Specifications
The Leviton 120V 15A illuminated industrial-grade AC toggle switch is a self-grounding single-pole AC toggle switch with built-in pilot light illuminator. Features a clear polycarbonate toggle and solid thermoplastic body construction with quiet toggle. The illuminated toggle indicates a live circuit; ideal for ensuring connected equipment like motors or fans aren’t left on accidentally. Perfect for shared bathrooms, quick circuit shutoffs in industrial environments, workshops, and more.
Convenient back or side wiring option using screw terminals allows for no-hassle installation. Copper or copper-clad wiring only; side-wiring accepts up to 12 AWG, back wiring accepts up to 10 AWG gauge wiring. Rugged, fully-enclosed switch mechanism ensures a minimum of 50,000 cycles. 15A max, withstands 1500V dielectric voltage for 1 minute, and up to 10 cycles of OL at 4.8 times rated current. Supports connected AC motors (1/2 HP @ 120V) up to 12 amps.
1201-PLC Specs and Features
- Clear, polycarbonate toggle switch with illuminated pilot light when circuit is ‘ON’
- Single-pole, 120VAC @ 15A
- Side or back wiring options, brass 8-32; back wiring #14-10 AWG, side wiring #14-12 AWG accepted
- Extra heavy-duty industrial grade construction for reliable repetitive toggling of connected AC loads
- Supports 120V AC motors up to 12A
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -40°C to 65°C
- Certifications
- ANSI: C-73
- CSA C22.2 No. 111: File #152105
- NEMA: WD-1 & WD-6
- NOM: 057
- RoHS: Compliant
- UL Fed Spec WS896E: File #E7458
- UL Standard: UL 20
- Warranty: 10-Year Limited Manufacturer’s Warranty
