About the product

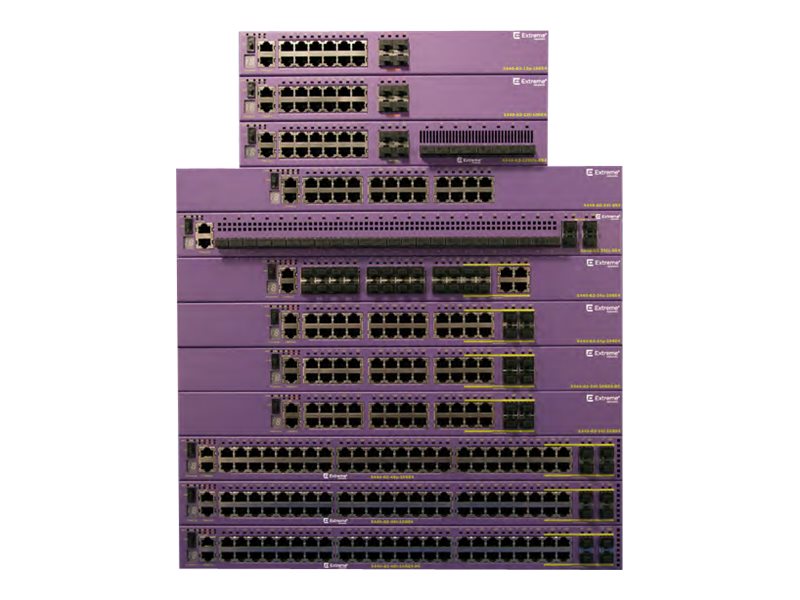

The ExtremeSwitching X440-G2 series is based on Extreme Networks ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology, in the Extreme Networks tradition of simplifying network deployments through the use of common hardware and software throughout the network. The ExtremeSwitching X440-G2 switches are cost-effective campus edge switches with IEEE 802.3at PoE-plus.
Technical Specifications
| Primary Information | |
| Product Description: | Extreme Networks ExtremeSwitching X440-G2 X440-G2-48p-10GE4 - switch - 48 ports - managed - rack-mountable |
| Device Type: | Switch - 48 ports - managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 4 x combo SFP |
| Power Over Ethernet (PoE): | PoE+ |
| Performance: | Aggregate switching bandwidth: 176 Gbps ¦ Forwarding performance: 130.9 Mpps ¦ Latency (64-byte packets): 4 µs |
| Capacity: | Virtual interfaces (VLANs): 4094 ¦ QoS hardware queues per port: 8 |
| MAC Address Table Size: | 16K entries |
| Jumbo Frame Support: | 9216 bytes |
| Features: | Traffic shaping, DoS attack prevention, CLEAR-Flow Security Rules Engine, 3MB packet buffer |
| Compliant Standards: | IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az |
| Power: | AC 120/230 V (50/60 Hz) |
| Power Redundancy: | Optional |
| Dimensions (WxDxH): | 17.4 in x 14.5 in x 1.7 in |
| Weight: | 14.55 lbs |
| Manufacturer Warranty: | Limited lifetime warranty |
| General | |
| Device Type: | Switch - 48 ports - managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 4 x combo SFP |
| Power Over Ethernet (PoE): | PoE+ |
| Performance: | Aggregate switching bandwidth: 176 Gbps ¦ Forwarding performance: 130.9 Mpps ¦ Latency (64-byte packets): 4 µs |
| Capacity: | Virtual interfaces (VLANs): 4094 ¦ QoS hardware queues per port: 8 |
| MAC Address Table Size: | 16K entries |
| Jumbo Frame Support: | 9216 bytes |
| Features: | Traffic shaping, DoS attack prevention, CLEAR-Flow Security Rules Engine, 3MB packet buffer |
| Compliant Standards: | IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az |
| Processor: | X MIPS: 1 GHz |
| RAM: | 1 GB DDR3 SDRAM |
| Flash Memory: | 4 GB |
| Status Indicators: | Port status, power, fan |
| Expansion / Connectivity | |
| Interfaces: | 48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 8 x 10GBase-X SFP+ ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Optional |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational: | 961 Watt |
| Features: | Redundant Power System (RPS) connector |
| Miscellaneous | |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, FCC, EN 61000-4-11, RoHS, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, KCC, WEEE, EN 60825-1, EN55024 Class A, CDRH, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:2008, VCCI Class A, China RoHS, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, RCM, EMC 2004/108/EC, LVD 2006/95/EC, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-4:2004, IEC 61000-4-5:2005, IEC 61000-4-6:2008, EN 55022:2006+A1:2007 Class A, FCC CFR47 Part 15 A, ACMA |
| Software / System Requirements | |
| Software Included: | ExtremeXOS Edge |
| Dimensions & Weight | |
| Width: | 17.4 in |
| Depth: | 14.5 in |
| Height: | 1.7 in |
| Weight: | 14.55 lbs |
