About the product

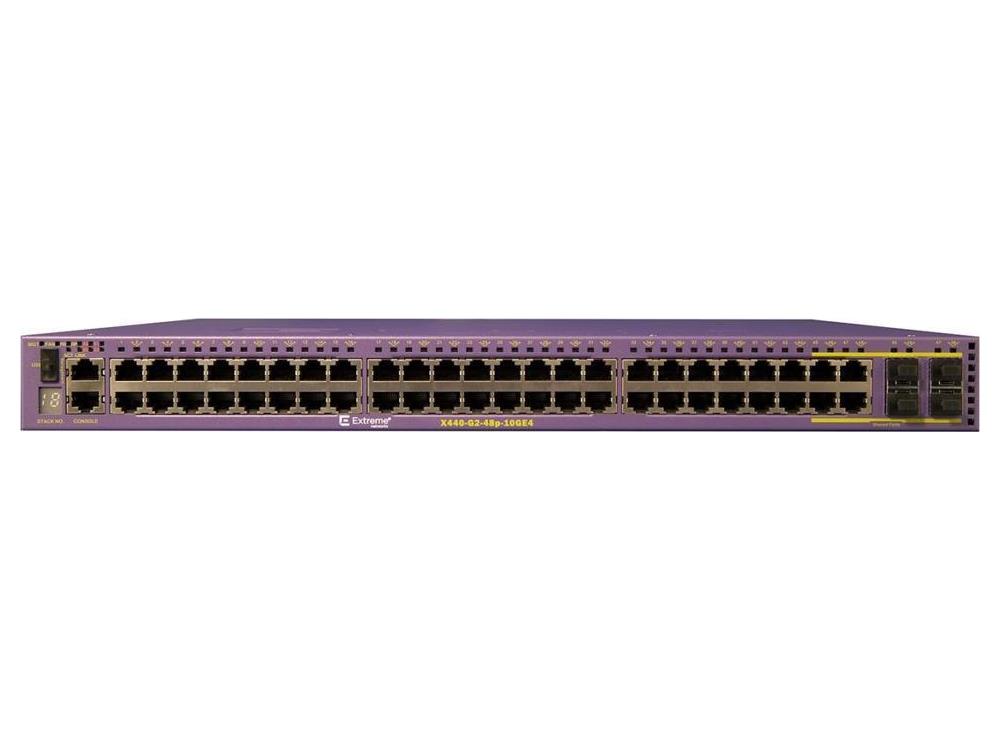

The X440-G2 Series is a scalable, cost-effective family of stackable edge switches designed for campus edge applications
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | X440-G2 |
| Form Factor: | 1RU |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 60 |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Type: | MIPS64 |
| RAM / Total Installed Size: | 1 GB |
| Flash Memory / Installed Size: | 4 GB |
| Networking Compliant Standards: | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3at |
| Power / Device Type: | Power Supply |
| Media Layer Supported: | Layer 2 and Layer 3 |
| Power / Installed Qty: | 1 |
| Power / Provided (W): | 740 Watt |
| Max Power Consumption: | 961 Watt |
| Power / Voltage Required: | 100 - 240V AC |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| MAC Address Table Size: | 16K |
| Jumbo Frame Support: | 9216 Byte |
| Remote Management Protocol: | IPv6; IPv4 |
| 10/100/1000BASE-T Ports: | 48 |
| SFP Ports: | 4 |
| Interfaces: | 48 x 10/100/1000BASE-T PoE-Plus, 4 x 1GBASE-X SFP (unpopulated) combo ports, 2 x 1GbE copper combo ports upgradable to 10GbE on rear-panel, 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing, 1 x Serial (console port RJ-45) with RTS/CTS modem control, 1 x 10/100/1000BASE-T out-of-band management port, 2 x 9 RPS port |
| Interfaces / Ports | |
| Interfaces: | 48 x 10/100/1000BASE-T PoE-Plus, 4 x 1GBASE-X SFP (unpopulated) combo ports, 2 x 1GbE copper combo ports upgradable to 10GbE on rear-panel, 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing, 1 x Serial (console port RJ-45) with RTS/CTS modem control, 1 x 10/100/1000BASE-T out-of-band management port, 2 x 9 RPS port |
| 10/100/1000BASE-T Ports: | 48 |
| SFP Ports: | 4 |
| Dimensions&Miscellaneous | |
| Width: | 17.36 Inch |
| Depth: | 14.51 Inch |
| Height: | 1.73 Inch |
| Weight: | 6.6 Kg |
| Service&Support | |
| Service & Support Type: | Extremes Universal LLW |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 50 Celsius |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
