About the product
Designed for industrial use, these Extreme industrial switches provide continuous uptime, manageability and operational efficiency. With full PoE+ power per PoE port, each switch offers the performance needed for today's power-hungry surveillance devices and WLAN access points. Extreme industrial switches are an excellent choice for industrial environments, including intelligent transportation systems, utilities, and smart cities. Full redundant ring technology creates fault-tolerant networks with high availability with industry standard technologies.
Technical Specifications
| Primary Information | |

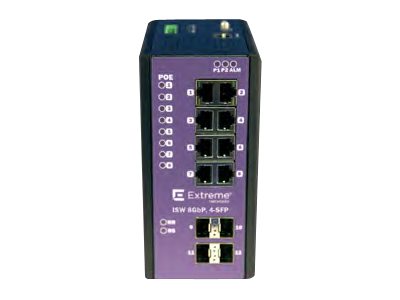

| Product Description: | Extreme Networks ExtremeSwitching Industrial Ethernet Switches ISW 8GBP,4-SFP - switch - 8 ports - managed |
| Device Type: | Switch - 8 ports - managed |
| Subtype: | Gigabit Ethernet |
| Ports: | 8 x 10/100/1000 (PoE+) + 4 x SFP |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 240 W |
| Performance: | Aggregate bandwidth: 24 Gbps |
| Capacity: | VLANs supported: 1024 ¦ Queues per port: 8 |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 9KB |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI |
| Features: | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, DHCP client, tagged VLAN, 4MB packet buffer, MAC and IP-based ACLs support, Storm Control, Back Pressure Support, Management Information Base (MIB) II |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Power: | DC 50 - 58 V |
| Power Redundancy: | Yes |
| Dimensions (WxDxH): | 3 in x 5 in x 6.1 in |
| Weight: | 3.11 lbs |
| General | |
| Device Type: | Switch - 8 ports - managed |
| Enclosure Type: | DIN rail mountable, wall-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 8 x 10/100/1000 (PoE+) + 4 x SFP |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 240 W |
| Performance: | Aggregate bandwidth: 24 Gbps |
| Capacity: | VLANs supported: 1024 ¦ Queues per port: 8 |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 9KB |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI |
| Authentication Method: | RADIUS, TACACS+ |
| Features: | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, DHCP client, tagged VLAN, 4MB packet buffer, MAC and IP-based ACLs support, Storm Control, Back Pressure Support, Management Information Base (MIB) II |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at |
| RAM: | 128 MB |
| Flash Memory: | 16 MB |
| Status Indicators: | Port status, power, status |
| Expansion / Connectivity | |
| Interfaces: | 8 x 1000Base-T RJ-45 ¦ 4 x SFP |
| Power | |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| Voltage Required: | DC 50 - 58 V |
| Power Consumption Operational: | 15 Watt |
| Miscellaneous | |
| MTBF: | >25 years |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, RoHS, EN 61000-4-8, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, EN 61000-6-4, WEEE, FCC Part 15 A, EN 61000-4-9, IEC 60950-1 Second Edition, IP30, IEC 61000-4-9, EMC 2004/108/EC |
| Dimensions & Weight | |
| Width: | 3 in |
| Depth: | 5 in |
| Height: | 6.1 in |
| Weight: | 3.11 lbs |
| Environmental Parameters | |
| Min Operating Temperature: | -40 °F |
| Max Operating Temperature: | 167 °F |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Min Storage Temperature: | -40 °F |
| Max Storage Temperature: | 185 °F |
