About the product

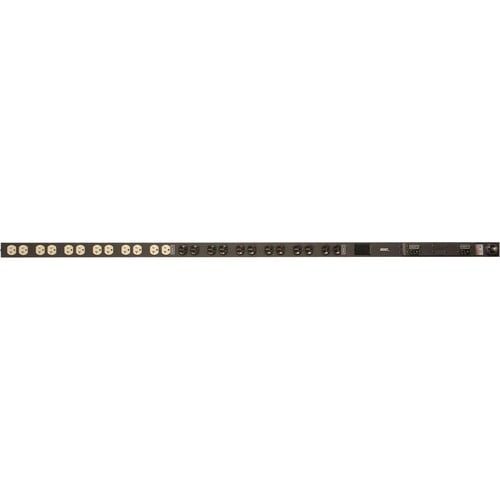

Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet.
Benefits
- Reliable rack power distribution.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
- A device fitted with multiple outputs for the distribution of electric power
- PDU provides active metering enabling energy optimization and circuit protection
- Basic PDU is the space-saving and cost-effective way to deliver power
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
Technical Specifications
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 30 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Power Rating (Watt) | 2.80 kW |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Basic |
| Receptacle Detail | 24 x NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | 18416 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | XPB240-103D20TL5 |
| Product Name | rPDU XPB240-103D20TL5 24-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Length | 66.25" (1682.75 mm) |
| Mount Type | Cabinet-mountable |
| Rack-mountable | |
| Width | 2" (50.80 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black Powder Coat |
| Color Family | Black |
