About the product

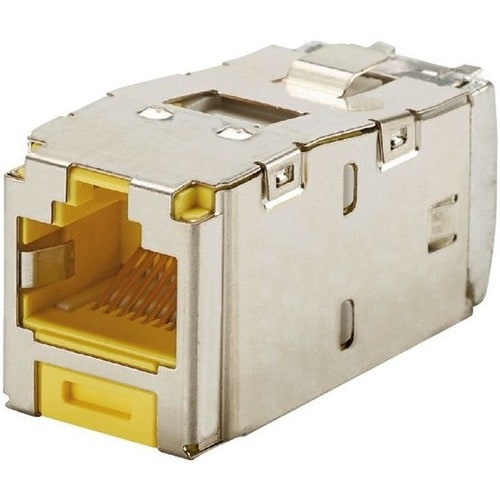

Category 6A/Class E A , 8-position, shielded jack module shall terminate 4-pair, 22 - 26 AWG, 100 ohm shielded twisted pair cable and shall not require use of a punchdown tool. Shielded jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded blue to designate Category 6A performance and shall include a universal label coded for T568A and T568B wiring schemes. The Mini-Com ® TX6A™ 10Gig™ Shielded Jack Module must be installed as part of the TX6A™ 10Gig™ Shielded Copper Cabling System to achieve IEEE 10GBASE-T certified performance.
- Connector with Tin plating
- Contact mating area is Gold plated for longer durability
- Terminate fascicle of network cables with this connector
Technical Specifications
| Technical Information | |
| Connector Details | 1 x RJ-45 Network Female |
| Shielding | Yes |
| Connector Type | RJ-45 Network - Female |
| Features | PoE |
| Connector Plating | Tin |
| Contact Plating | Gold |
| Physical Characteristics | |
| Height | 0.73" (18.54 mm) |
| Depth | 1.50" (38.10 mm) |
| Product Color | Yellow |
| Color Family | Yellow |
| Product Material | Phosphor Bronze |
| Acrylonitrile Butadiene Styrene (ABS) | |
| Plastic | |
| General Information | |
| Product Type | Network Connector |
| Manufacturer Part Number | CJS6X88TGYLY |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | Mini-Com Network Connector |
| Product Line | Mini-Com |
| Brand Name | Panduit |
Product compare
Product warranty
Standard manufacturer warranty as applicable
Return policy
15 days return in original condition.
Price guarantee
!00% we are always lower than market price.
