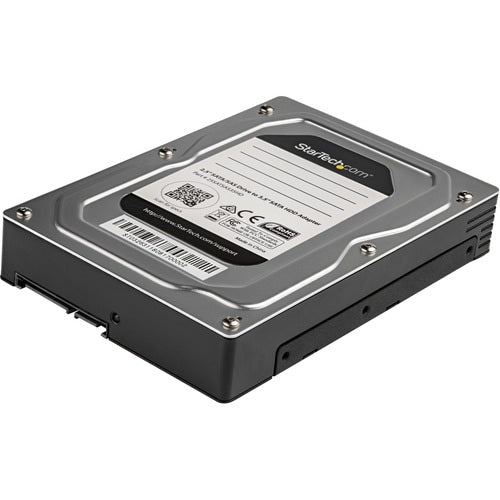

StarTech.com 2.5 to 3.5 Hard Drive Adapter - For SATA and SAS SSD / HD

This 2.5" to 3.5" hard drive adapter lets you install a 2.5" SATA or SAS hard drive (HDD) or solid-state drive (SSD) into an internal or external 3.5" drive bay, using standard drive-mounting holes.

Convert a 2.5" drive into a 3.5" drive

The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD.

To utilize the full speed potential of your SATA/SAS drive, the adapter supports transfer speeds up to 6Gbps.

Easy and flexible installation

You can install the adapter into a desktop, server, storage-array, hot-swap bay, and drive drawer. It offers permanent installation in a 3.5" drive bay with standard mounting holes. When the adapter is installed, you simply slide a 2.5" HDD/SSD into the adapter enclosure, with no tools required.

The adapter is suitable for drives with a height of up to 15 mm. Virtually any 2.5" SATA/SAS drive can be made to look and function like a 3.5" drive.

Identify and track your drives

The adapter includes a label you can use to track and record information about the installed drive.

The 25SATSAS35HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

• Supports 2.5" form factor drives up to 15 mm in height
• Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs
• Tool-less 2.5" drive installation
• Supports SATA I, II and III (up to 6Gbps) and SAS I and II (up to 6Gbps)

Network & Communication
Wireless LAN	No
I/O Expansions
Number of Total Expansion Bays	1
"Number of 2.5"" Bays"	1
Interfaces/Ports
Host Interface	6Gb/s SAS
Drive Interface	Serial Attached SCSI (SAS)
	SATA/600
Technical Information
Number of Hard Drives Supported	1
Number of Hard Drives Installed	No
Number of Solid State Drive Supported	1
Number of Solid State Drive Installed	No
Miscellaneous
Package Contents	2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs 1 x Set of Mounting Hardware 1 x Quick-start Guide
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
	Restriction of Hazardous Substances (RoHS)
General Information
Product Type	Drive Bay Adapter
Manufacturer Part Number	25SATSAS35HD
Manufacturer Website Address	http://www.startech.com
Packaged Quantity	1 Each
Manufacturer	StarTech.com
Product Name	2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
Brand Name	StarTech.com
Physical Characteristics
Weight (Approximate)	8.90 oz (252.31 g)
Form Factor	Internal
Height	1" (25.40 mm)
Width	4" (101.60 mm)
Depth	5.70" (144.78 mm)
Compatible Drive Bay Width	3.5"
Product Color	Silver
	Black
Color Family	Dual Color
Product Material	Aluminum
	Plastic
