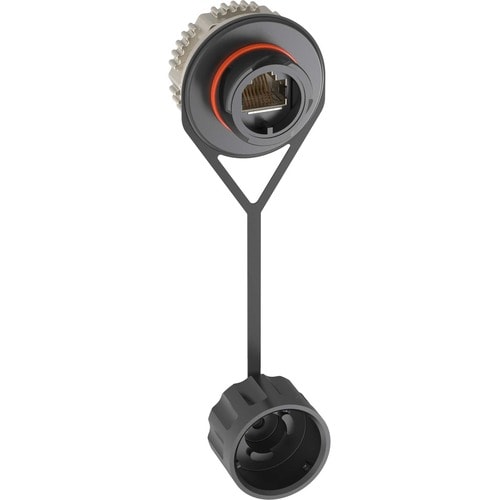

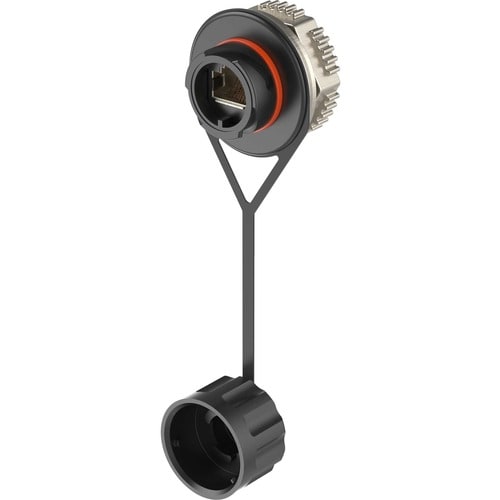

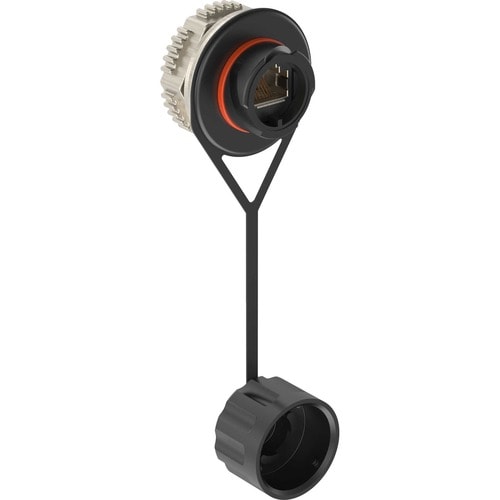

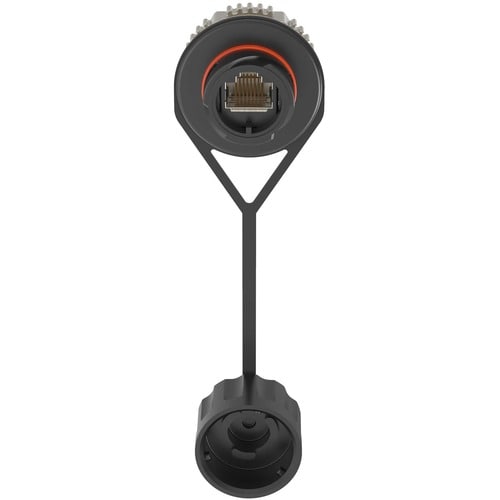

Panduit IndustrialNet Shielded Coupler Bulkhead, Cat 6A, RJ45, BL - MOQ (minimu

The Category 6A IndustrialNet™ Shielded Coupler Bulkhead RJ45 jack and plug incorporates an IP67 rated seal and is designed to provide protection from dust and temporary immersion in water. Termination to a 4-pair, 24 AWG, 100 Ohm twisted pair cable does not require the use of a punch down tool. The protective cap ensures IP67 protection of the connector and plug in the unmated condition. The shielded coupler bulkhead is black.

• IP/NEMA/UL rated connection:Withstands light wash down and temporary submerged conditions in harsh factory environments without loss of performance when mated to IP67 IndustrialNet™ Patch Cords; Maintains NEMA 4/4X rating when properly installed on NEMA 4/4X enclosures
• Bulkhead anti-rotation washer:Eliminates the potential for module rotation
• Connector mounting nut: Holds bulkhead safely and securely from inside of enclosure
• Robust construction :Plug contact plated with 50 micro inches of gold
• Bayonet style interface :Provides positive reinforcement during mated condition; rated to 100 mating cycle
• Protective cap :Maintains IP67 seal during unmated connection
• Utilizes patented Giga-TX ™ Technology :Optimizes performance by reducing conductor untwist to less than 1/8"
• Forward motion termination: Speeds installation and places no impact on critical components for maximum reliability
• Universal wiring scheme :Termination cap is color coded for T568A and T568B wiring schemes
• Standard mounting :Bulkhead connector fits into standard IEC 1-13/64" (30.5mm) diameter mounting hole or optional faceplate
