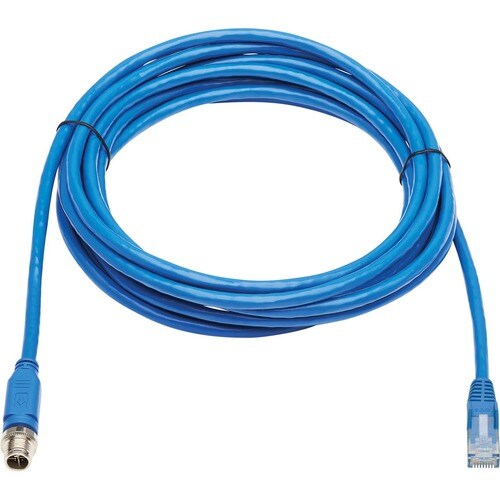

Tripp Lite by Eaton NM12-602-10M-BL Cat.6 Network Cable - 32.8 ft (10 m) Categor
Tripp Lite by Eaton NM12-602-10M-BL Cat.6 Network Cable - 32.8 ft (10 m) Categor
VPN:NM12-602-10M-BL SKU:CB169421 CPU:37332265456
- Features PoE
- Experience a simpler way to connect devices with the entire business network
- Features Category 6 cable type
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details




Recently Viewed
Tripp Lite by Eaton NM12-602-10M-BL Cat.6 Network Cable - 32.8 ft (10 m) Categor
Product information summary

About the product
Cat6 M12 Cable Recommended for Industrial and Other Environments

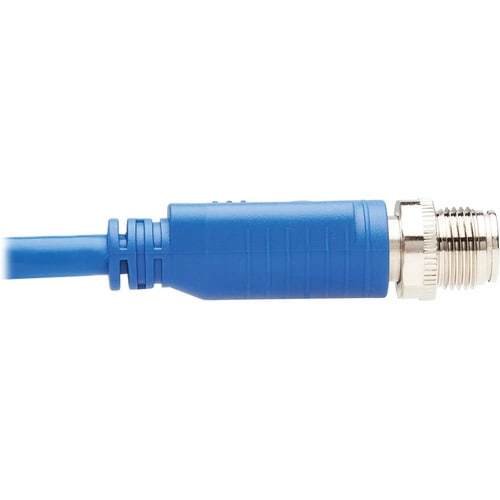

This M12 X-Code cable connects Gigabit Ethernet networks in wet/humid environments, places subject to vibration and other areas where protection from harsh elements is essential, such as factories, warehouses, recycling plants, airports, railways and machine shops. The circular M12 connector with 12-millimeter locking thread is especially designed for washdown and corrosive applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, transportation and food/beverage facilities.
IP68 Rating Denotes Resistance to Dust and Water
The IP68 rating means the M12 connector end is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
Because this Cat6 cable supports high-power 60W PoE, it can supply the power to operate compatible data, voice, security and audio/video PoE devices, such as surveillance cameras, VoIP telephones and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device, as well as installing separate power and data cables. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.
CMR-LP Certified for Cable Installations with Increased Power Levels
UL's Limited Power (LP) certification indicates the NM12-602-10M-BL has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat.
Colored Blue to Avoid Misidentification That Can Cause Costly Downtime
This Cat6 UTP copper cable features a blue PVC jacket that allows easy, fast identification in field devices, controllers and switches and helps prevent the cable from becoming inadvertently disconnected.
- Features PoE
- Experience a simpler way to connect devices with the entire business network
- Features Category 6 cable type
Technical Specifications
Miscellaneous | |
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Physical Characteristics | |
Shipping Weight (Approximate) | 1.05 lb (476.27 g) |
Shipping Height | 1.50" (38.10 mm) |
Shipping Width | 10.50" (266.70 mm) |
Jacket Material | Polyvinyl Chloride (PVC) |
Jacket Color | Blue |
General Information | |
Product Type | Network Cable |
Manufacturer Part Number | NM1260210MBL |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Manufacturer | Eaton Corporation |
Product Model | NM12-602-10M-BL |
Product Name | NM12-602-10M-BL Cat.6 Network Cable |
Brand Name | Tripp Lite by Eaton |
Technical Information | |
Cable Length | 32.8 ft (10 m) |
Conductor | Copper |
Data Transfer Rate | 1 Gbit/s |
Device Supported | VoIP Device |
Switch | |
Surveillance Camera | |
Security Device | |
PoE-enabled Device | |
Network Device | |
Controller | |
Access Control Device | |
Jacket Type | CMR |
Shielding | No |
Features | PoE++ |
Temperature Resistant | |
Vibration Resistant | |
Water Resistant | |
Corrosion Resistant | |
Damage Resistant | |
Dust Resistant | |
Heat Resistant | |
Lockable | |
Moisture Resistant | |
PoE | |
Cable Type | Category 6 |

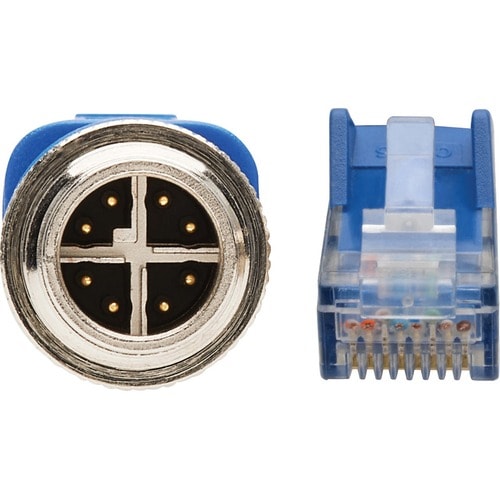

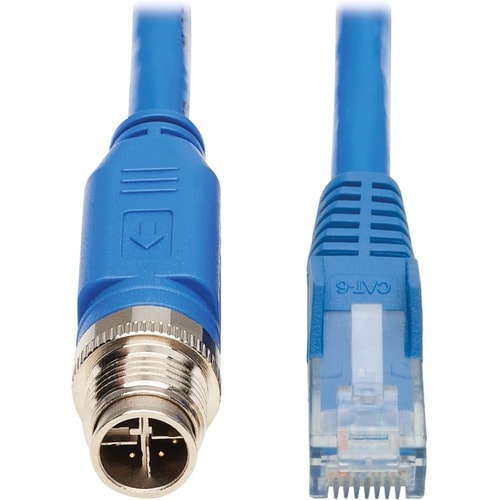

Connector Type on First End | M12-X Network - Male |

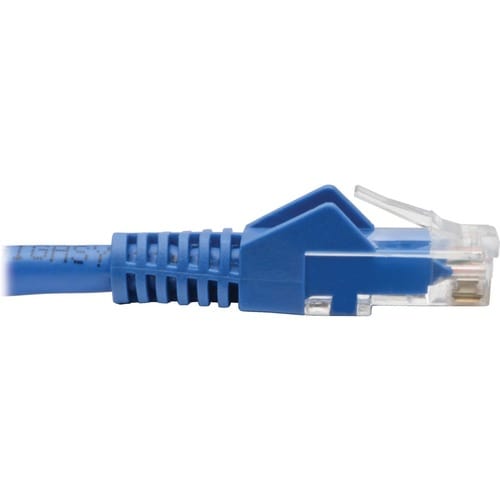

Connector Type on Second End | RJ-45 Network - Male |
American Wire Gauge | 23 AWG |
Connector on First End Details | 1 x M12-X Network - Male |
Connector on Second End Details | 1 x RJ-45 Network - Male |
Boot Type | Snagless |
