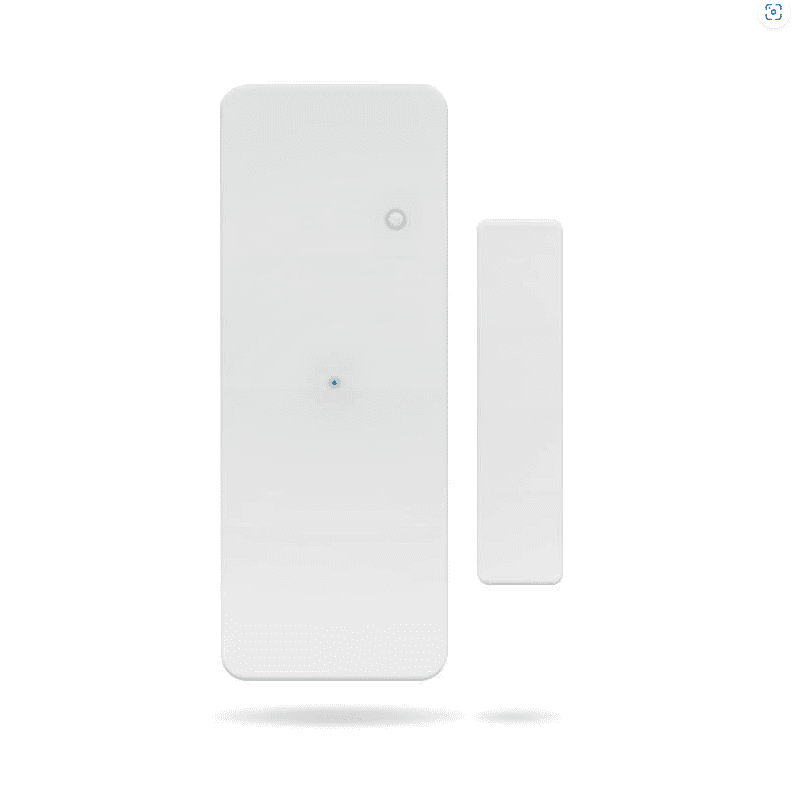

Insteon Open Close Door Window Sensor (2843-222)

Automatically control lights or appliances when doors open and close with the INSTEON wireless open/close sensor. These units are battery operated (single AA battery) and completely wireless.

When the door/window/cabinet opens, the controlled device turns on.  When it closes, the device turns off.

It can also trigger an event through an automation controller like the ISY994 for more advanced control, timers and more.

You can also wire additional sensors (such as VIP100) to a single 2843-222 to monitor multiple doors/windows with a single sensor.

As this is a wireless device, it can link directly to a dual band device or relay to a powerline only device through any Insteon dual band device or repeater.

  2843-222 TriggerLinc Features:

• Insteon compatible wireless transmitter
• Magnetic contact open/close sensor for doors/windows/drawers/cabinets
• Built-in magnetic contact has 1/2"" operating gap.
• Supports additional standard security sensors such as VIP100, VIP94, VIP1000 series or equivalent
• Requires at least one 2443 Access Point or dual-band device within range. Range up to 100 Feet
• Operates on single AA battery
• Includes magnet, AA battery
• Dimensions: Main: 3.46” x 1.32” x 0.76"", Magnet: 2.28” x 0.55” x 0.43
• Average battery life 6 months indoor use, 50 activations per day, 2 links.
• NOT X10 compatible
• 1-year warranty
• FCC & IC approved
