About the product

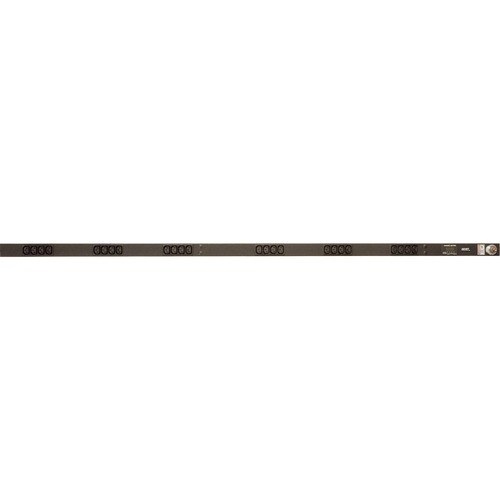

The 38631 is a PDU equipped with a local power meter displaying real-time power metrics. This metered PDU is ideal for installations in facilities with proper surge protection at the main electrical service entrance.
- PDU is reliable for power protection and management solutions
- Metered PDU offers reliable, rack-mount and multi-outlet power source
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 20 A |
| Power Rating (Watt) | 3.30 kW |
| Physical Characteristics | |
| Length | 66.25" (1682.75 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 1.72" (43.69 mm) |
| Depth | 1.61" (40.89 mm) |
| Mounting Orientation | Vertical |
| Technical Information | |
| Protection Type | Surge Protection |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Metered |
| Receptacle Detail | 24 x IEC 60320 C13 |
| Plug/Connector Detail | 1 x NEMA L6-20P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | 38631 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | VHVBCN242-102C13TL6 |
| Product Name | VHVBCN242-102C13TL6 24-Outlets PDU |
| Brand Name | Vertiv Geist |
