About the product
Abstract
The Lenovo Storage D1212 and D1224 Disk Expansion Enclosures offer 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide simplicity, speed, scalability, security, and high availability for small to large businesses. The D1212 and D1224 deliver enterprise-class storage technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host connectivity.
The D1212 and D1224 expansion units are designed for a wide range of workloads, including big data and analytics, video surveillance, media streaming, private clouds, file and print serving, e-mail and collaboration, and databases. They also well-suited for software defined storage (SDS) and Windows Server solutions with Storage Spaces.
Introduction
The Lenovo Storage D1212 and D1224 Disk Expansion Enclosures offer 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide simplicity, speed, scalability, security, and high availability for small to large businesses. The D1212 and D1224 deliver enterprise-class storage technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host connectivity.
The D1212 and D1224 expansion units are designed for a wide range of workloads, including big data and analytics, video surveillance, media streaming, private clouds, file and print serving, e-mail and collaboration, and databases. They also well-suited for software defined storage (SDS) and Windows Server solutions with Storage Spaces.
Did you know?
The D1212 and D1224 expansion enclosures offer flexible drive configurations with the choice of 2.5-inch and 3.5-inch drive form factors, 10K or 15K rpm SAS and 7.2K rpm NL SAS hard disk drives (HDDs) and self-encrypting drives (SEDs), and SAS solid-state drives (SSDs).
With support for daisy chaining, the D1212 can be scaled up to 960 TB for capacity-optimized configurations, and the D1224 can be scaled up to 192 drives for performance-optimized configurations.
The D1212 and D1224 expansion units support 12 Gbps SAS connectivity, which doubles the data transfer rate compared to 6 Gb SAS solutions to maximize performance of storage I/O-intensive applications.
- Optimize workflows by sharing the resources of the workstation using Ethernet connectivity
- Provides amazing solution for expanding PC storage
Technical Specifications
| Interfaces/Ports | |
| Host Interface | 12Gb/s SAS |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| "Number of 2.5"" Bays" | 24 |
| Technical Information | |
| Number of Hard Drives Supported | 24 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | No |
| Physical Characteristics | |
| Weight (Approximate) | 52.91 lb (24000 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 24.80" (629.92 mm) |
| Cooling Fan | Yes |
| General Information | |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | 4587E31 |
| Manufacturer Website Address | http://www.lenovo.com |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Model | D1224 |

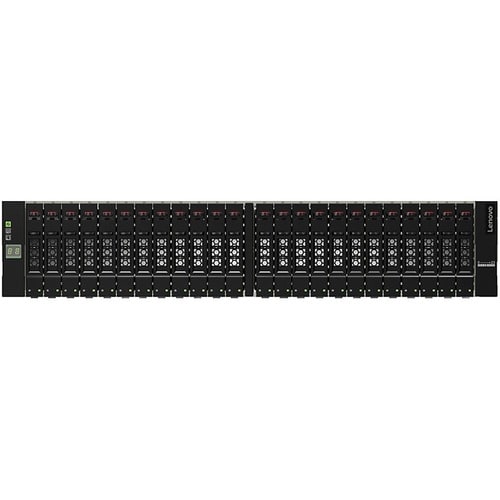

| Product Name | D1224 SFF Dual ESM Disk Expansion Enclosure |
| Brand Name | Lenovo |
