About the product
The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industray standard Notebooks.
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Software | |
| Operating System Supported | Windows |
| Physical Characteristics | |
| Weight (Approximate) | 11.99 oz (340 g) |
| Height | 1.21" (30.75 mm) |
| Depth | 3.15" (80 mm) |
| Miscellaneous | |

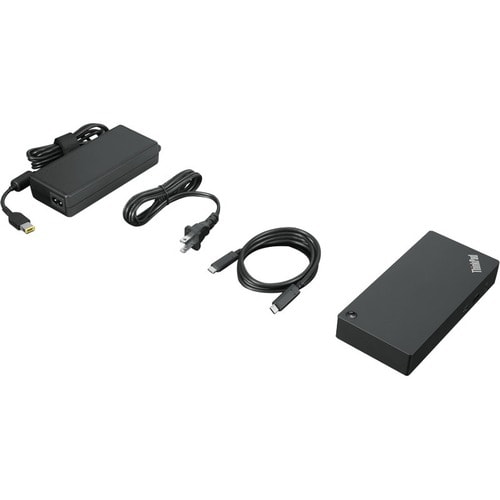

| Package Contents |
|
| Compatibility | Lenovo ThinkPad Notebook |
| Brand Compatibility | Lenovo |
| Kensington Security Slot | Yes |
| Technical Information | |
| Device Supported | Notebook |
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Supported Resolutions | 3840 x 2160 |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | 40AY0090US |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkPad Universal USB-C Dock |
| Product Line | ThinkPad |
| Brand Name | Lenovo |

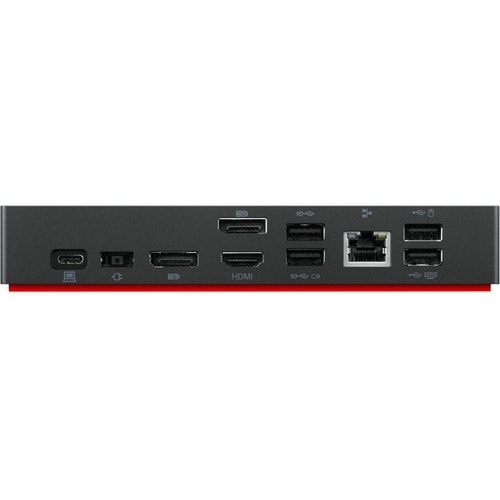

| Interfaces/Ports | |
| Host Interface | USB Type C |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of DisplayPorts | 2 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C |
