About the product

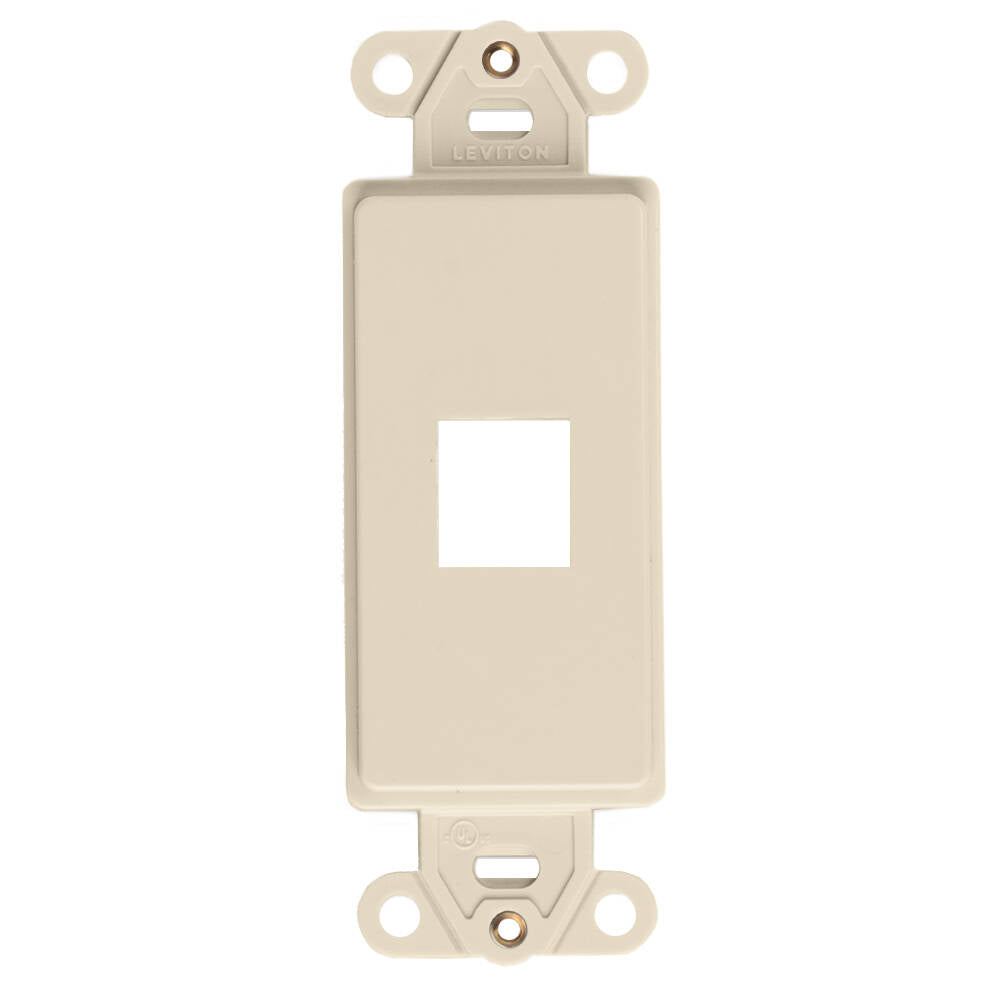

Leviton Decora Quickport Plate 1 Port Ivory Overview
Decora inserts accept all QuickPort snap-in modules, and are used to support voice, data, audio, and video applications in NEMA openings where a Decora-brand look is desired. Available in white, light almond, ivory, gray, black, and brown.
The workstation inserts shall be field-configurable true Decora inserts that fit standard NEMA openings. It should provide 1, 2, 3, 4, or 6 ports which are field configurable with a variety of QuickPort snap-in connectors/modules. It must be constructed of high-impact, fire-retardant plastic rated UL 94V-0. Colors, configurations, and related wallplates are to be specified per the schedule on the plan. Must also be cULus Listed, and compliant with ANSI/TIA-568-C.0 specifications.
Leviton Decora Quickport Plate Features
- Mounts flush with Decora wallplate
- True Decora-brand design matches Leviton Decora rocker switches and electrical products
- Fits within minimum NEMA openings
- High port density options
- Inserts accept all QuickPort connectors
Leviton Decora Quickport Plate Specifications
Design Considerations
- Use where a Decora look and flush-mounting are important
- Fits locations where a Decora opening exists
- Available in 1-, 2-, 3-, 4-, and 6-port options
- If ganged with electrical devices a barrier box must be used
- Put blanks (41084-BxB) in unused ports to allow for future expansion
- Specify port identification method (colored modules, designation labels, and custom silk-screening available)
- To identify ports, use different colored connectors for each application or Leviton pre-printed Port Designation Labels (41080-LEB)
- Available in six colors: white, light almond, ivory, grey, black, and brown
- Compatible with Decora Plus Wallplates when used with standard NEMA back boxes that sit flush or are slightly recessed in the wall
- Not compatible with Decora Plus Wallplates when used with low-voltage box eliminators
Standard Compliance
- cULus Listed (UL 1863 & CAN/CSA-C22.2 No. 182.4)
- ANSI/TIA-568-C.0
Physical Specifications
- Dimensions: See page two
- Materials: High-impact, fire-retardant plastic rated UL 94V-0
- Capacity: 1 to 6 QuickPort connectors
Country Of Origin
- Mexico
Warranty Information
- For a copy of Leviton product warranties, visit
- www.leviton.com/warranty.
Technical Specifications
Leviton Decora Quickport Plate 1 Port Ivory Overview
Decora inserts accept all QuickPort snap-in modules, and are used to support voice, data, audio, and video applications in NEMA openings where a Decora-brand look is desired. Available in white, light almond, ivory, gray, black, and brown.
The workstation inserts shall be field-configurable true Decora inserts that fit standard NEMA openings. It should provide 1, 2, 3, 4, or 6 ports which are field configurable with a variety of QuickPort snap-in connectors/modules. It must be constructed of high-impact, fire-retardant plastic rated UL 94V-0. Colors, configurations, and related wallplates are to be specified per the schedule on the plan. Must also be cULus Listed, and compliant with ANSI/TIA-568-C.0 specifications.
Leviton Decora Quickport Plate Features
- Mounts flush with Decora wallplate
- True Decora-brand design matches Leviton Decora rocker switches and electrical products
- Fits within minimum NEMA openings
- High port density options
- Inserts accept all QuickPort connectors
Leviton Decora Quickport Plate Specifications
Design Considerations
- Use where a Decora look and flush-mounting are important
- Fits locations where a Decora opening exists
- Available in 1-, 2-, 3-, 4-, and 6-port options
- If ganged with electrical devices a barrier box must be used
- Put blanks (41084-BxB) in unused ports to allow for future expansion
- Specify port identification method (colored modules, designation labels, and custom silk-screening available)
- To identify ports, use different colored connectors for each application or Leviton pre-printed Port Designation Labels (41080-LEB)
- Available in six colors: white, light almond, ivory, grey, black, and brown
- Compatible with Decora Plus Wallplates when used with standard NEMA back boxes that sit flush or are slightly recessed in the wall
- Not compatible with Decora Plus Wallplates when used with low-voltage box eliminators
Standard Compliance
- cULus Listed (UL 1863 & CAN/CSA-C22.2 No. 182.4)
- ANSI/TIA-568-C.0
Physical Specifications
- Dimensions: See page two
- Materials: High-impact, fire-retardant plastic rated UL 94V-0
- Capacity: 1 to 6 QuickPort connectors
Country Of Origin
- Mexico
Warranty Information
- For a copy of Leviton product warranties, visit
- www.leviton.com/warranty.
