Wilson Electronics
ENTERPRISE 4300 3OUT ANTENNA 100K SQ/FT CLD 70DB 50OHM 110-240V
ENTERPRISE 4300 3OUT ANTENNA 100K SQ/FT CLD 70DB 50OHM 110-240V
VPN:460152F SKU: 680FFW UPC:810005961240
Please see below description
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
ENTERPRISE 4300 3OUT ANTENNA 100K SQ/FT CLD 70DB 50OHM 110-240V
Product information summary

About the product

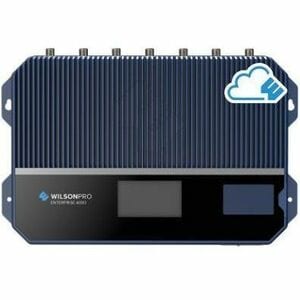

The WIlsonPro Enterprise 4300/4300R is a commercial-grade, in-building cellular amplifier that represents the latest in cell signal boosting technology-including a revolutionary industry-first, three outdoor-antenna-port configuration. Depending on cell tower locations, using up to three outdoor antennas (each dedicated to a specific frequency band to collectively amplify signals from multiple towers) helps maximize coverage in commercial spaces up to 100,000 sq.ft.
Based on user need or preference, the Enterprise 4300/4300R can also utilize "common mode" as a default; using only a single outdoor (donor) antenna and a single port to receive cell signal.
With wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud for remote functionality, the Enterprise 4300/4300R provides integrators and building managers with the capability to remotely manage, monitor, and adjust their amplifier, as well as receive real-time updates on a smartphone or tablet. Immediate notification of issues, such as system failure, oscillation, or change in signal strength is also provided via text or email.
The Enterprise 4300/4300R generates up to 26 dBm in uplink power- enabling it to reach towers at much greater distances. With up to 17 dBm in downlink power, it's also one of the most powerful amplifiers in its price range. With all four indoor-antenna ports equipped with up to 17 dBm downlink power of their own, each of the Enterprise 4300/4300R's four indoor antennas can effectively broadcast signal. The "R" model name signifies its rack-mount option.
This amplifier includes a 3-year manufacturer's warranty and a 30-day money-back guarantee.
Technical Specifications
Interfaces/Ports | |
RF Connector Type | N-Type |
Miscellaneous | |
Package Contents |
|
Power Description | |
Input Voltage | 120 V AC |
230 V AC | |
Power Source | Power Supply |
Physical Characteristics | |
Weight (Approximate) | 7.68 kg |
Height | 12" (304.80 mm) |
Width | 19" (482.60 mm) |
Depth | 2.50" (63.50 mm) |
General Information | |
Product Type | Cellular Phone Signal Booster |
Manufacturer Part Number | 460152F |
Manufacturer Website Address | http://www.wilsonelectronics.com |
Manufacturer | Wilson Electronics |
Product Model | 460152F |
Product Name | Enterprise 4300 460152F Cellular Phone Signal Booster |
Product Line | Enterprise 4300 |
Brand Name | WilsonPro |
Technical Information | |
Impedance | 50 Ohm |
Features | eXtended Dynamic Range (XDR) Technology |
Frequency Range | 777 MHz to 787 MHz |
824 MHz to 894 MHz | |
729 MHz to 746 MHz | |
698 MHz to 716 MHz | |
1850 MHz to 1990 MHz | |
2110 MHz to 2155 MHz | |
1710 MHz to 1755 MHz | |
Antenna Type | Dome |
Directional Antenna | |
Maximum Gain | 70 dB |
Cellular Data Connectivity Technology | LTE |
Cellular Generation | 4G LTE |
Cellular Network Supported | LTE |
Maximum Coverage Area | 9290.3 m² |
