About the product

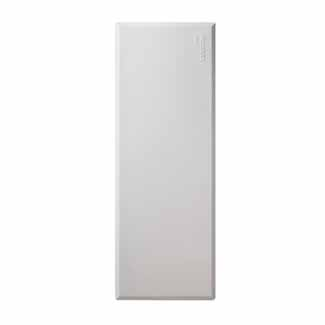

Leviton 42"" Structured Media Flush-Mount Cover, Metal, White Overview
28"" and 42"" Structured Media Enclosures terminate home-run wires from wall outlets and provide a distribution point for voice, data, and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. They can be surface mounted or recessed by mounting between wall studs (on 16-inch centers), using provided wood screws for a clean and professionally finished appearance.
Enclosures shall be a one-piece (excluding cover) box, made of 20-gauge, white powder-coated steel. They shall be flush mounted with four wood screws (provided) on standard 16-inch center wall studs prior to drywall installation, or surface mounted after drywall installation. The enclosures include multiple knockouts on the top, bottom, and sides to support conduit and facilitate cable routing and entry. The enclosures shall meet all applicable standards: be cULus and ACA listed, comply with ANSI/TIA-568-C and ANSI/TIA-570-B requirements, and be UL Listed for fire and burglary systems. The manufacturer shall provide a two-year limited product warranty.
- Recess mounting should precede drywall installation
- The enclosure must not be mounted in firewall locations
- Premium Hinged Vented Door recommended when using active equipment inside the enclosure
Leviton 42"" Structured Media Flush-Mount Cover Features
- The cutout pattern in the bottom accommodates single gang or full-width AC power modules and Mini and Universal DC power supplies
- Mounting slots on the enclosure simplify adjustment for different sheetrock depths
- Sheetrock depth marks (1/2-inch, 5/8-inch and 3/4-inch) on the enclosure simplify alignment
- Lance slots provide clean cable management within the enclosure
- Product may be surface or recess mounted
- Ships with a cardboard insert to help prevent drywall debris or paint overspray from entering the enclosure during the rough-in stage of installation
- Keyhole slots on the cover allow for easier installation
- Multiple knockouts on the top support conduit up to two inches in diameter and facilitate cable routing and entry
- Self-healing foam grommets protect cable bundles
- Holds quarter-, half-, and full-width expansion modules, with the ability to mount most modules vertically or horizontally
- Three enclosure cover types are available: Flush-Mount Cover, Economy Hinged Door, and Premium Vented Hinged Door
Leviton 42"" Structured Media Flush-Mount Cover Specifications
- Dimensional Data:
- Height: 43.25 Inch
- Width: 15.62 Inch
- Enclosure Material: Steel
- Paint Finish: Powder-Coated
- Color: White
- Gauge of Steel: 18 Gauge
- Height: 43.25 Inch
- Item: Flush Mount Cover
- Series: Series 420
- Warranty: 2-Year Limited
- Width: 15.62 Inch
- Standards and Certifications:
- ACA Listed: Yes
- CULUS Listed: Yes
- FCC Rated: Part 68
- TIA/EIA: 568-A 570-A
- UL Listed: Fire and Burglary
Technical Specifications
Leviton 42"" Structured Media Flush-Mount Cover, Metal, White Overview
28"" and 42"" Structured Media Enclosures terminate home-run wires from wall outlets and provide a distribution point for voice, data, and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. They can be surface mounted or recessed by mounting between wall studs (on 16-inch centers), using provided wood screws for a clean and professionally finished appearance.
Enclosures shall be a one-piece (excluding cover) box, made of 20-gauge, white powder-coated steel. They shall be flush mounted with four wood screws (provided) on standard 16-inch center wall studs prior to drywall installation, or surface mounted after drywall installation. The enclosures include multiple knockouts on the top, bottom, and sides to support conduit and facilitate cable routing and entry. The enclosures shall meet all applicable standards: be cULus and ACA listed, comply with ANSI/TIA-568-C and ANSI/TIA-570-B requirements, and be UL Listed for fire and burglary systems. The manufacturer shall provide a two-year limited product warranty.
- Recess mounting should precede drywall installation
- The enclosure must not be mounted in firewall locations
- Premium Hinged Vented Door recommended when using active equipment inside the enclosure
Leviton 42"" Structured Media Flush-Mount Cover Features
- The cutout pattern in the bottom accommodates single gang or full-width AC power modules and Mini and Universal DC power supplies
- Mounting slots on the enclosure simplify adjustment for different sheetrock depths
- Sheetrock depth marks (1/2-inch, 5/8-inch and 3/4-inch) on the enclosure simplify alignment
- Lance slots provide clean cable management within the enclosure
- Product may be surface or recess mounted
- Ships with a cardboard insert to help prevent drywall debris or paint overspray from entering the enclosure during the rough-in stage of installation
- Keyhole slots on the cover allow for easier installation
- Multiple knockouts on the top support conduit up to two inches in diameter and facilitate cable routing and entry
- Self-healing foam grommets protect cable bundles
- Holds quarter-, half-, and full-width expansion modules, with the ability to mount most modules vertically or horizontally
- Three enclosure cover types are available: Flush-Mount Cover, Economy Hinged Door, and Premium Vented Hinged Door
Leviton 42"" Structured Media Flush-Mount Cover Specifications
- Dimensional Data:
- Height: 43.25 Inch
- Width: 15.62 Inch
- Enclosure Material: Steel
- Paint Finish: Powder-Coated
- Color: White
- Gauge of Steel: 18 Gauge
- Height: 43.25 Inch
- Item: Flush Mount Cover
- Series: Series 420
- Warranty: 2-Year Limited
- Width: 15.62 Inch
- Standards and Certifications:
- ACA Listed: Yes
- CULUS Listed: Yes
- FCC Rated: Part 68
- TIA/EIA: 568-A 570-A
- UL Listed: Fire and Burglary
