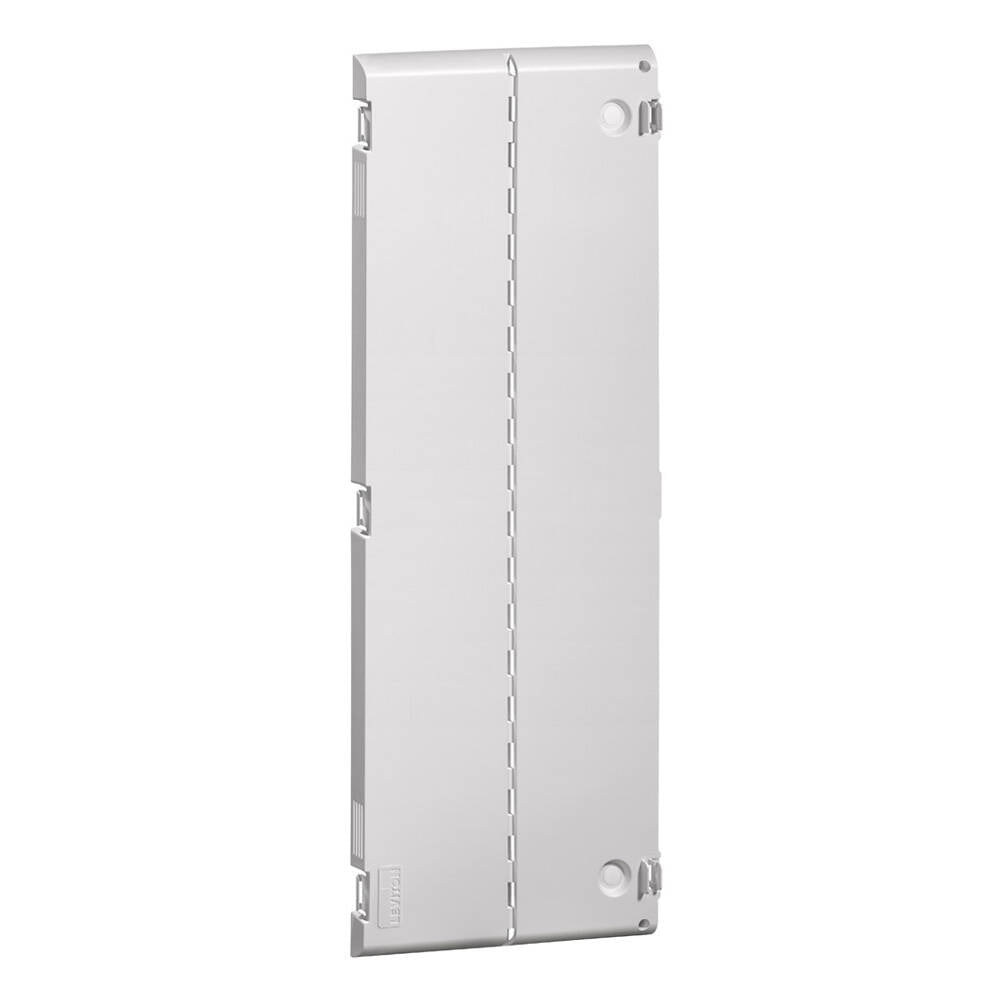

Leviton 42"" Vented Hinged Door, Plastic, White Overview
The enclosure shall be molded from UL-rated ABS flame-retardant polymer. The enclosure shall be suitable for new construction or retrofit installations and shall allow for flush mounting on standard 16"" on-center studs with four wood screws (not provided) or for surface mounting on a variety of surfaces capable of supporting the enclosure and contents. The enclosure shall include multiple removable knockouts on the top and bottom to support conduit fittings and to facilitate cable routing and entry. The enclosure shall accept all Leviton Structured Media panels, modules, brackets, and mounting plates. The enclosure shall allow for installation of two singlegang j-boxes. Vented hinged doors shall be available to promote airflow into the enclosure. The enclosure design shall allow hinged doors to open from the left or right and provide for toolless door installation. Optional door locks shall be available. An optional trim ring shall be available to cover drywall cut irregularities and to retrofit a plastic vented hinged door to an existing metal enclosure, allowing for greater RF transparency.
Application
Structured Media Centers provide an excellent termination and mounting location for in-home structured wiring systems and components. The 42-Inch Wireless Structured Media Center allows the full reach of a wireless network, as opposed to standard metal enclosures that can limit the range of a wireless signal.
Leviton 42"" Vented Hinged Door Features
- Uses ABS polymer construction to permit the full reach of wireless signals by diminishing the effect of interference
- 180-degree hinged door allows for quick and easy access to network equipment
- Makes servicing and expansion easy with seven 1-inch and three 2-inch knockouts and additional 1-inch nested knockouts
- Compatible with Leviton Connected Home patch panels, voice,data, video, and audio distribution modules
- Assures safety with UL compliant ABS flame-retardant polymer
- Vented hinged door assists in airflow for cooling active gear
- Ratcheting Hinge & Latch System creates fast, tool-free door installations and helps accommodate for wall imperfections
- Existing metal enclosure can be retrofitted for RF transparency by using Trim Ring Accesstory (49605-42T) and door (49605-42S)
- Optional door locks available
Design Considerations
- 42-inch height for added equipment space
- Allows for installation of two single-gang J-boxes or a single full-size power module
- Not intended for installation in a fire-rated wall
Standards Compliance
- cULus Listed:
- UL Standard 2416 – Audio/Video, information and communication technology equipment cabinet, enclosure, and rack systems
- UL Standard 985 - Household Fire-Warning System Units
- UL Standard 1023 - Household Burglar-Alarm System Units
- RoHS
Physical Specifications
- Materials: ABS Polymer
- Country Of Origin: USA
- Warranty Information: For Leviton product warranties, go to leviton.com/warranty
Technical Specifications
Leviton 42"" Vented Hinged Door, Plastic, White Overview
The enclosure shall be molded from UL-rated ABS flame-retardant polymer. The enclosure shall be suitable for new construction or retrofit installations and shall allow for flush mounting on standard 16"" on-center studs with four wood screws (not provided) or for surface mounting on a variety of surfaces capable of supporting the enclosure and contents. The enclosure shall include multiple removable knockouts on the top and bottom to support conduit fittings and to facilitate cable routing and entry. The enclosure shall accept all Leviton Structured Media panels, modules, brackets, and mounting plates. The enclosure shall allow for installation of two singlegang j-boxes. Vented hinged doors shall be available to promote airflow into the enclosure. The enclosure design shall allow hinged doors to open from the left or right and provide for toolless door installation. Optional door locks shall be available. An optional trim ring shall be available to cover drywall cut irregularities and to retrofit a plastic vented hinged door to an existing metal enclosure, allowing for greater RF transparency.
Application
Structured Media Centers provide an excellent termination and mounting location for in-home structured wiring systems and components. The 42-Inch Wireless Structured Media Center allows the full reach of a wireless network, as opposed to standard metal enclosures that can limit the range of a wireless signal.
Leviton 42"" Vented Hinged Door Features
- Uses ABS polymer construction to permit the full reach of wireless signals by diminishing the effect of interference
- 180-degree hinged door allows for quick and easy access to network equipment
- Makes servicing and expansion easy with seven 1-inch and three 2-inch knockouts and additional 1-inch nested knockouts
- Compatible with Leviton Connected Home patch panels, voice,data, video, and audio distribution modules
- Assures safety with UL compliant ABS flame-retardant polymer
- Vented hinged door assists in airflow for cooling active gear
- Ratcheting Hinge & Latch System creates fast, tool-free door installations and helps accommodate for wall imperfections
- Existing metal enclosure can be retrofitted for RF transparency by using Trim Ring Accesstory (49605-42T) and door (49605-42S)
- Optional door locks available
Design Considerations
- 42-inch height for added equipment space
- Allows for installation of two single-gang J-boxes or a single full-size power module
- Not intended for installation in a fire-rated wall
Standards Compliance
- cULus Listed:
- UL Standard 2416 – Audio/Video, information and communication technology equipment cabinet, enclosure, and rack systems
- UL Standard 985 - Household Fire-Warning System Units
- UL Standard 1023 - Household Burglar-Alarm System Units
- RoHS
Physical Specifications
- Materials: ABS Polymer
- Country Of Origin: USA
- Warranty Information: For Leviton product warranties, go to leviton.com/warranty
