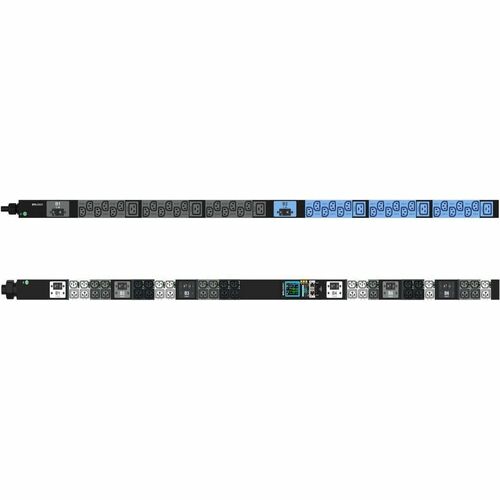

Lenovo 32-Outlets PDU - Switched, Monitored - NEMA L6-30P - 16 x IEC 6

The Lenovo zero-U (0U) Basic and Switched and Monitored power distribution units (PDUs) are the ideal solutions when you need flexible, reliable, easy-to-deploy power distribution with branch circuit protection to minimize downtime. These rack-dense units distribute power to up to 48 outlets and 42 outlets. 0U PDUs are designed to be installed vertically in the rear channel of a Lenovo rack, thereby not consuming any horizontal rack space that otherwise be used by servers, storage and network switches (hence the term 0U).

Did you know?

With ever growing power densities in today's rack environments, it is all too easy to add load in the wrong place and trigger an overload event. The 0U Basic and Switched and Monitored PDU offerings can minimize this impact, providing the ability to quickly recover with resettable circuit breakers for each designated bank of receptacles, referred to as load groups. Breakers are color coded to the receptacles in a particular load group to aid in configuration, installation, and maintenance. Furthermore, the Basic PDUs offer a costeffective option to users who do not require intelligence. The Switched and Monitored PDUs also offer individual outlet remote monitoring and switching (on/off), which allow for remote power sequencing and further helping to prevent unintended PDU overloading.

• Advanced features, such as color-coded with locking IEC outlets
• Enlogic's standard low-profile design
• Toolless mounting
• Operate reliably in high temperature environments.
• Sleek and space saving unit with low profile circuit breakers
• Color-coded receptacles and different type of power outlets which can be customized according to needs and IT requirements.
• Support Network Management Module and alerting capabilities supporting HTTP, HTTPS, SSH, SNMP, and email.
• Support encryption, passwords, and advanced authorization options including local permissions, LDAP/S, and Active Directory.
• Daisy Chain up to 64 Rack PDUs and supports a maximum of 10 environmental sensors each (sensors are optional)
• Power Sharing feature that allows the data of the PDU to be recorded even during a Power Failure.
• The Switched & Monitored PDUs also provide both current options with unique features: Single-Phase Models - All Single-Phase model support hydraulic magnetic breakers that are colour coded to the corresponding outlets. Three-Phase Models - In standard 415 V Three-Phase (Wye) configurations, the colour of each circuit breaker and outlet correspond to the appropriate input phase. The PDU is labelled to indicate the input-phase associated with each circuit breaker and outlets. - In North America 208 V Three-phase (delta) configurations, the colour of the circuit breaker corresponds to the line connections and includes a label of the two connected input-phases
