About the product
NVIDIA RTX 4500 Ada Generation GPU offers high performance real-time ray tracing, AI-accelerated compute, and professional graphics rendering within an optimized power envelope. Building upon the major SM enhancements from the Ada Lovelace GPU, the NVIDIA Ada Lovelace architecture enhances ray tracing operations, tensor matrix operations, and concurrent executions of FP32 and INT32 operations.
The ThinkSystem NVIDIA RTX 4500 Ada 24GB PCIe Active GPU offers the following features:
- PCIe Gen4
- Four DisplayPort 1.4a connectors
- AV1 encode and decode support
- DisplayPort with audio
- 3D stereo support with stereo connector
- NVIDIA® GPUDirect® for Video support
- NVIDIA GPUDirect Remote Direct Memory Access (RDMA) support
- NVIDIA Quadro® Sync II1 compatibility
- NVIDIA RTX Experience™
- NVIDIA RTX Desktop Manager software
- NVIDIA RTX IO support
- HDCP 2.2 support
- NVIDIA Mosaic2 technology
Technical Specifications
| Miscellaneous | |
| Platform Supported | PC |
| Power Description | |
| Maximum Power Consumption | 210 W |
| Interfaces/Ports | |
| Host Interface | PCI Express 4.0 x16 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 4 |
| Memory | |
| Standard Memory | 24 GB |
| Bus Width | 192 bit |
| Maximum Memory Bandwidth | 432 GB/s |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 4500 Ada |
| Chipset Series | RTX |
| General Information | |
| Product Type | Graphic Card |
| Manufacturer Part Number | 4X67A96491 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |

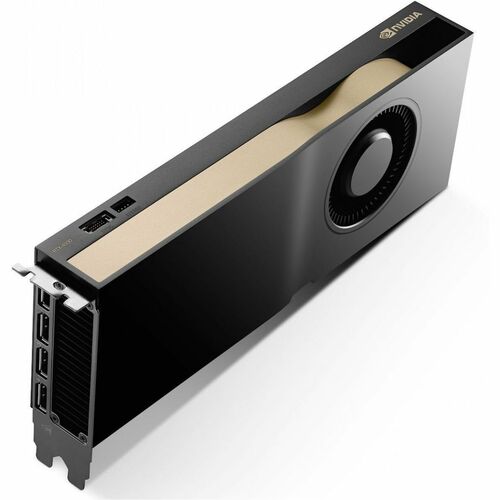

| Product Name | ThinkSystem NVIDIA RTX 4500 Ada 24GB PCIe Active GPU Graphic Card |
| Brand Name | Lenovo |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Length | 10.50" (266.70 mm) |
| Cooler Type | Active Cooler |
| Height | 4.40" (111.76 mm) |
| Card Length | Full-length |
| Card Height | Full-height |
| Slot Space Required | Dual |
| Technical Information | |
| API Supported | DirectCompute |
| DirectX 12 | |
| Vulkan 1.3 | |
| OpenGL 4.6 | |
| OpenCL 3.0 | |
| Features | GPUDirect Technology |
| Mosaic Technology | |
| VR Ready | |
| ECC | |
| AV1 Encode/Decode | |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 7680 |
| AI-powered | Yes |
