About the product
The P5520 SSDs are part of the growing family of PCIe 4.0 SSDs that match the performance of the ThinkSystem V2 family of servers. By having a Gen 4 host interface, sequential performance is doubled compared to Gen 3 SSDs. The NVMe host interface also maximizes flash storage performance and minimizes latency. The P5520 SSDs drives offer 40% and 60% improvements in latency over SAS and SATA SSDs respectively.
Lenovo Read Intensive SSDs like the P5520 SSDs are suitable for read-intensive and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.
- The high-read speed of 5427.20 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 1945.60 MB/s, get a quick response when updating or transferring files
- Store as many documents, pictures and videos as you need with 1.92 TB capacity
- PCI Express NVMe 4.0 x4 interface provides quick data transfer and greater throughput
Technical Specifications
| Network & Communication | |
| Wireless LAN | No |
| Technical Information | |
| Storage Capacity | 1.92 TB |
| Interfaces/Ports | |
| Drive Interface | U.2 |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | ThinkSystem Servers:
|
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Drive Performance | |
| Maximum Read Transfer Rate | 5427.20 MB/s |
| Maximum Write Transfer Rate | 1945.60 MB/s |
| Random 4KB Read | 700000IOPS |
| Random 4KB Write | 114000IOPS |
| Endurance (DWPD) | 1 |
| Endurance (TBW) | 3584 TB |
| Endurance Type | Read Intensive |
| General Information | |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A13941 |
| Manufacturer Website Address | http://www.lenovo.com |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |

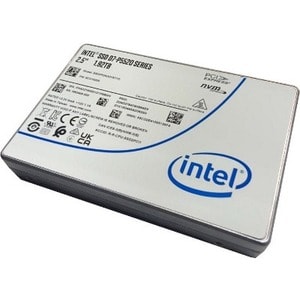

| Product Name | ThinkSystem 2.5" U.2 P5520 1.92TB Read Intensive NVMe PCIe 4.0 x4 HS SSD |
| Product Series | D7-P5520 |
| Brand Name | Lenovo |
| Physical Characteristics | |
| Hot Swappable | Yes |
| Weight (Approximate) | 5.15 oz (146 g) |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 0.59" (15 mm) |
| Width | 2.76" (70 mm) |
| Depth | 3.94" (100 mm) |
| Product Color | Silver |
