About the product

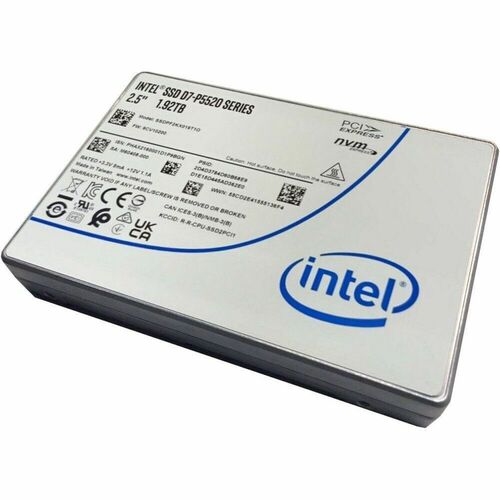

The ThinkSystem P5520 Read Intensive NVMe SSDs are general-purpose yet high-performance drives with a PCIe 4.0 x4 interface. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the P5520 SSDs and consider their use in IT solutions.
- The high-read speed of 5.30 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 1.90 MB/s, get a quick response when updating or transferring files
- Store as many documents, pictures and videos as you need with 1.92 TB capacity
- With PCI Express NVMe 4.0 x4 interface get superb reliability and high-speed data transfer
Technical Specifications
| Network & Communication | |
| Wireless LAN | No |
| Technical Information | |
| Storage Capacity | 1.92 TB |
| Interfaces/Ports | |
| Drive Interface | U.2 |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 5.15 oz (146 g) |
| Form Factor | 3.5" |
| Height | 0.59" (15 mm) |
| Width | 2.76" (70 mm) |
| Depth | 3.94" (100 mm) |
| Drive Performance | |
| Maximum Read Transfer Rate | 5.30 MB/s |
| Maximum Write Transfer Rate | 1.90 MB/s |
| Random 4KB Read | 700000IOPS |
| Random 4KB Write | 114000IOPS |
| Endurance (DWPD) | 1 |
| Endurance (TBW) | 3584 TB |
| Endurance Type | Read Intensive |
| General Information | |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A79664 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Name | P5520 Solid State Drive |
| Product Series | P5520 |
| Brand Name | Lenovo |
