About the product

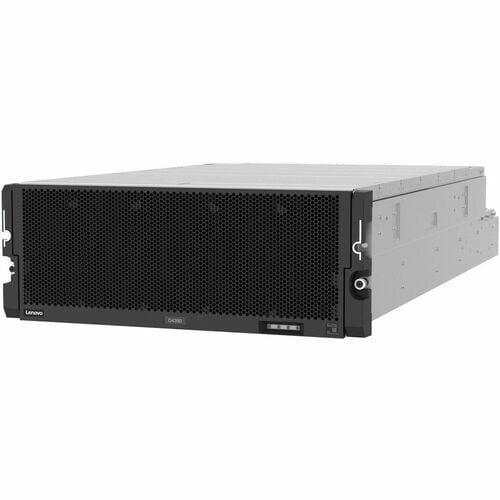

The Lenovo ThinkSystem D4390 Direct Attached Storage Enclosure offers newer high performance 24 Gbps SAS direct-attached drive-rich storage expansion capabilities that are designed to provide density, speed, scalability, security, and high availability for high-capacity application. The D4390 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 90 drives in 4U rack space and host-RAID or JBOD ("Just a Bunch Of Drives") non-RAID host connectivity.
- Ensures convenient and safe installation with rack mounting facility
- Perfect solution for your storage needs. Offers great customization according to your storage needs.
Technical Specifications
| Interfaces/Ports | |
| Drive Interface | Serial Attached SCSI (SAS) |
| Network & Communication | |
| Wireless LAN | No |
| Warranty | |
| Additional Warranty Information | Three-year limited warranty, 9x5 Next Business Day Onsite (upgradeable). |
| I/O Expansions | |
| Number of Total Expansion Bays | 90 |
| "Number of 3.5"" Bays" | 90 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Total Hard Drive Capacity Installed | 22 TB |
| Number of Hard Drives Supported | 90 |
| Number of Solid State Drive Supported | 90 |
| Number of Solid State Drive Installed | 0 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.90" (175.30 mm) |
| Width | 17.56" (446 mm) |
| Depth | 42.52" (1080 mm) |
| Cooling Fan | Yes |
| Software | |
| Operating System Supported | Windows Server 2019 |
| SuSE Linux Enterprise Server 15 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| General Information | |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | 4XB7A90620 |
| Manufacturer Website Address | http://www.lenovo.com |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Model | D4390 |
| Product Name | ThinkSystem D4390 Direct Attached Storage Enclosure |
| Product Line | ThinkSystem |
| Brand Name | Lenovo |
