About the product

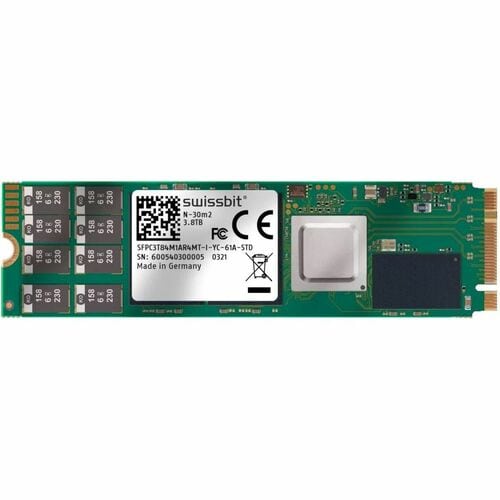

The ThinkSystem M.2 N-30m2 Read Intensive NVMe PCIe 3.0 Industrial SSDs, in capacities up to 3.84TB, are high performance NVMe M.2 drives suitable operating system boot purposes and general data storage functions on ThinkSystem servers.
This product guide provides essential presales information to understand the N-30m2 M.2 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the N-30m2 M.2 SSDs and consider their use in IT solutions.
- Based on the Swissbit N-30m2 family of industrial solid state drives
- TLC 3D NAND flash
- End-to-end data protection
- Thermal throttling/sensor
- On-Board Power Fail Protection (Power loss protection, PLP)
- ROHS-compliant
- Command sets: TRIM, S.M.A.R.T, NCQ
- TCG Opal compliant self-encrypting drive (SED)
Technical Specifications
| Warranty | |
| Additional Warranty Information | The N-30m2 M.2 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express 3.1 x4 |
| Technical Information | |
| Storage Capacity | 3.84 TB |
| Features | End-to-end Data Protection |
| General Information | |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A91531 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem M.2 N-30m2 3.84TB Read Intensive NVMe PCIe 3.0 x4 NHS SSD (Industrial) |
| Brand Name | Lenovo |
| Physical Characteristics | |
| Hot Swappable | No |
| Weight (Approximate) | 0.32 oz (9 g) |
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Length | 3.15" (80 mm) |
| Width | 0.87" (22 mm) |
| Drive Performance | |
| Random 4KB Read | 378000IOPS |
| Random 4KB Write | 520000IOPS |
| Endurance (DWPD) | 0.4 |
| Endurance (TBW) | 2946 TB |
| Endurance Type | Read Intensive |
| Mean Time Between Failures (MTBF) | 342.2 Year |
| Maximum Sequential Read | 2.40 GB/s |
| Maximum Sequential Write | 2.19 GB/s |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Lenovo ThinkSystem Servers:
|
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS) |
