Lenovo NVIDIA ConnectX (4XC7A99370)

Name: Lenovo NVIDIA ConnectX (4XC7A99370)
Brand: Lenovo
SKU: CMED6824
Price: 6153.99 CAD
Availability: InStock

$6,153.99 CAD

~~$6,892.99 CAD~~ $6,153.99 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

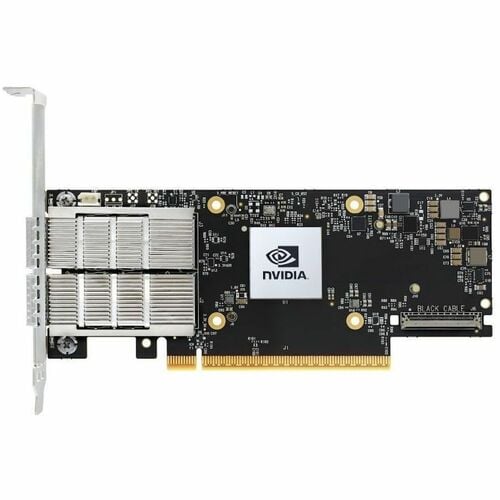

Lenovo NVIDIA ConnectX-7 200Gigabit Ethernet Card - PCI Express 5.0 x16 - 200 Gbit/s Data Transfer Rate - Optical Fiber - QSFP112 - Plug-in Card

VPN: 4XC7A99370 SKU:CMED6824

Features:

Accelerated Networking and Security: ConnectX-7 provides a broad set of software-defined, hardware-accelerated networking, storage, and security capabilities which enable organizations to modernize and secure their IT infrastructures. Moreover, ConnectX-7 empowers agile and high-performance solutions from edge to core data centers to clouds, all while enhancing network security and reducing the total cost of ownership.

Accelerate Data-Driven Scientific Computing: ConnectX-7 provides ultra-low latency, extreme throughput, and innovative NVIDIA In-Network Computing engines to deliver the acceleration, scalability, and feature- rich technology needed for today's modern scientific computing workloads.

Accelerate Software- Defined Networking: NVIDIA ASAP<sup>2</sup>technology accelerates software-defined networking, delivering line-rate performance with no CPU penalty.

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

About the product

Accelerate Software- Defined Networking: NVIDIA ASAP<sup>2</sup>technology accelerates software-defined networking, delivering line-rate performance with no CPU penalty.

Enhance Storage Performance: ConnectX-7 enables high- performance and efficient data storage by leveraging RDMA/RoCE, GPUDirect Storage, and hardware-based NVMe-oF offload engines.

SharedIO (4XC7A86669 only): SharedIO (Shared I/O) is an implementation of Sockets Direct that is offered in Lenovo direct water-cooled (DWC) servers such as the SD650 V3, where there are two server nodes per DWC tray. In this implementation, the ConnectX-7 adapter is installed in a PCIe slot in one node and the adapter is connected via a cable to a PCIe connector on the second node. The result is that the two nodes share the network connection of the adapter with significant savings both in the cost of the adapters but also the cost of switch ports.

Technical Specifications

Interfaces/Ports
Host Interface	PCI Express 5.0 x16
Physical Characteristics
Form Factor	Plug-in Card
I/O Expansions
Expansion Slot Type	QSFP112
Total Number of Expansion Slots	2
Media & Performance
Maximum Data Transfer Rate	200 Gbit/s
Media Type Supported	Optical Fiber
Miscellaneous
Application/Usage	Network
	Data Center
Device Supported	Server
Operating System Compatibility	Windows Server 2019
	Windows Server 2022
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
General Information
Product Type	200Gigabit Ethernet Card
Manufacturer Part Number	4XC7A99370
Manufacturer Website Address	http://www.lenovo.com
Manufacturer	Lenovo Group Limited
Product Name	NVIDIA ConnectX-7 200Gigabit Ethernet Card
Product Line	ConnectX-7
Brand Name	Lenovo
Technical Information
Features	iSCSI Extensions over RDMA (iSER)
	Network Virtualization using Generic Routing Encapsulation (NVGRE)
	PXE Support
	Quality of Service (QoS)
	RDMA over Converged Ethernet (RoCE)
	Generic Network Virtualization Encapsulation (GENEVE)
	Single Root I/O Virtualization (SR-IOV)
	UEFI Support
	Virtual Extensible LAN (VXLAN)
	RDMA Support
	ASAP²
AI-powered	Yes
