About the product

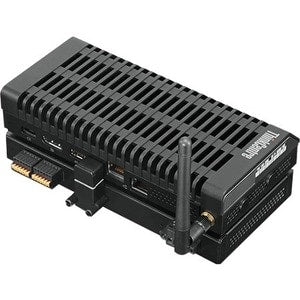

The ThinkCentre Nano IoT IOBOX connects to Nano IoT PCs via a Type-C connection, providing extra vertical IO offerings such as Power over Ethernet (PoE), Digital Input/Output, and a Serial port (RS232/422/485) offering flexibility and adaptability during Retail, Manufacturing, and Smart Building system integration. One DC cable provides voltage input to the IOBOX and Nano IoT PC simultaneously, saving customers the extra burden of an AC/DC power transfer in industrial DC power supply environments.
Features & Benefits

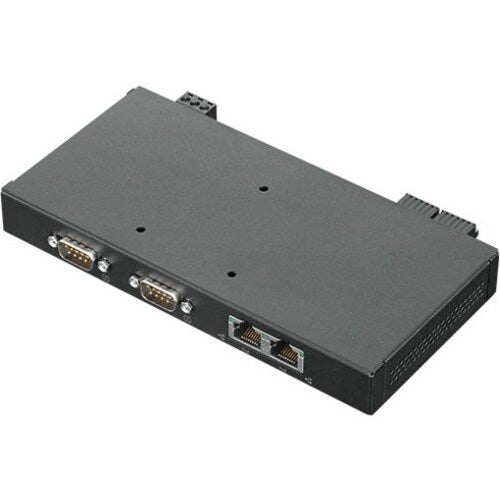

- Expansion Port, Front: 2x RS-232/422/485 (SW changeable),2x PoE

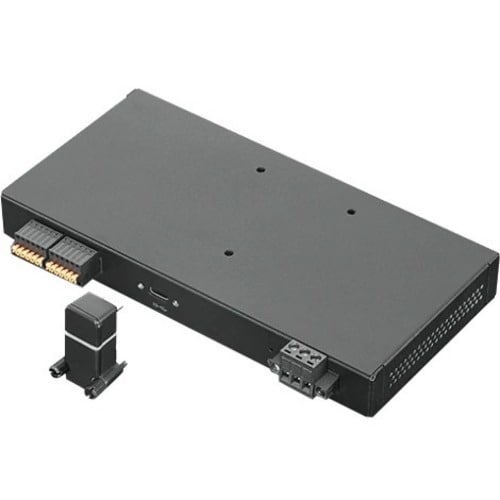

- Expansion Port, Rear: 1x DC 9~36V input, 1x Type-C*, 4x DI, 4x DO
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Miscellaneous | |
| Compatibility |
|
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 1.12 lb (506 g) |
| Form Factor | Nano |
| Height | 1.01" (25.60 mm) |
| Width | 7.01" (178 mm) |
| Depth | 3.46" (88 mm) |
| Product Color | Black |
| General Information | |
| Product Type | Single Board Computer |
| Manufacturer Part Number | 4XH0X77236 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 4XH0X77236 |
| Product Name | ThinkCentre Nano IoT IOBOX |
| Package Type | Retail |
| Product Line | ThinkCentre |
| Brand Name | Lenovo |
