About the product

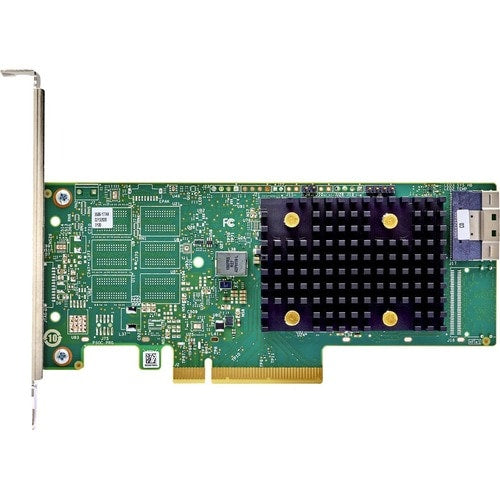

The ThinkSystem 440-8i and 440-16i SAS/SATA PCIe Gen4 12Gb HBAs are high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. The adapters integrate the latest enhancements SAS technology and offer 8 or 16 lanes of 12 Gbps SAS. The adapters are available in two form factors, low-profile PCIe and a custom form-factor design. The custom design adapter is cabled to an onboard PCIe 4.0 x8 port on the server and not occupy a standard PCIe slot.
Technical Specifications
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Platform Supported | PC |
| Linux | |
| Interfaces/Ports | |
| Total Number of SAS Ports | 8 |
| Number of SAS Ports (Internal) | 8 |
| SAS Connector Details | 2 x4 SFF-8654 |
| General Information | |
| Product Type | SAS Controller |
| Manufacturer Part Number | 4Y37A78601 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 440-8i |
| Product Name | ThinkSystem 440-8i SAS/SATA PCIe Gen4 12Gb HBA |
| Brand Name | Lenovo |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Device Supported | Server |
| RAID Levels | JBOD |
| Controller Type | 12Gb/s SAS |
| Operating System Supported | VMware ESXi 6.7 U2 |
| VMware ESXi 6.7 U1 | |
| VMware ESXi 6.7 | |
| Ubuntu 22.04 LTS | |
| Ubuntu 20.04 LTS | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 | |
| Ubuntu 18.04.5 LTS | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| VMware ESXi 6.7 U3 | |
| VMware ESXi 7.0 U1 | |
| VMware ESXi 7.0 U2 | |
| VMware ESXi 7.0 U3 | |
| Windows 10 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 7.8 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 9.0 | |
| SUSE Linux Enterprise Server 12 SP3 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| RAID Supported | No |
