About the product

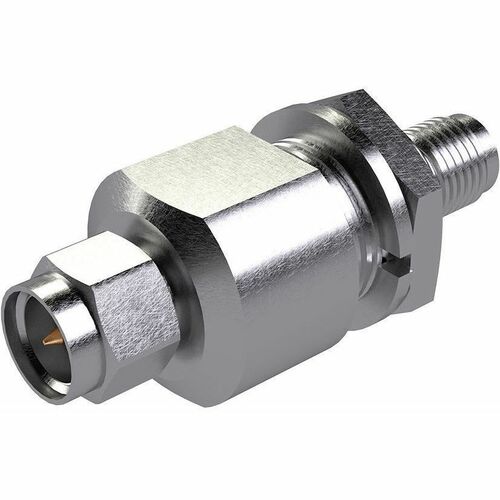

This multi strike surge arrester offers a flexible light duty surge protection solution using SMA connectors allowing it to be mounted in line between antennas and feeder cables or coaxial cables and radio / router devices.
The surge arrester can operate between 0-6GHz with low return and insertion loss. The surge arrester is fitted with a bulkhead feature which can be used to mount and earth the device to conductive earth bars / panels of max 6.5mm (0.25") thickness, alternatively this feature can accept a heavy duty earth tag.
- Operates between 0-6GHz
- Fitted with bulkhead type panel mounting
- SMA surge suppressor (m-f)
- Light duty surge protector
Technical Specifications
| Environmental Conditions | |
| Maximum Operating Temperature | 185°F (85°C) |
| Power Description | |
| Power Handling | 25 VA |
| Clamp Voltage | 150 V |
| Physical Characteristics | |
| Height | 1.39" (35.30 mm) |
| Width | 0.59" (15 mm) |
| Product Material | Brass |
| Technical Information | |
| Dataline Protection | Antenna |
| Coaxial | |
| Router | |
| Receptacles | SMA |
| Plug/Connector Type | SMA |
| General Information | |
| Product Type | Surge Protector Module |
| Manufacturer Part Number | SAMS-SP-SMABJ |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Manufacturer | Panorama Antennas Ltd |
| Product Name | PANORAMA SURGE ARRESTOR MULTI STRIKE |
| Brand Name | Panorama Antennas |
