About the product

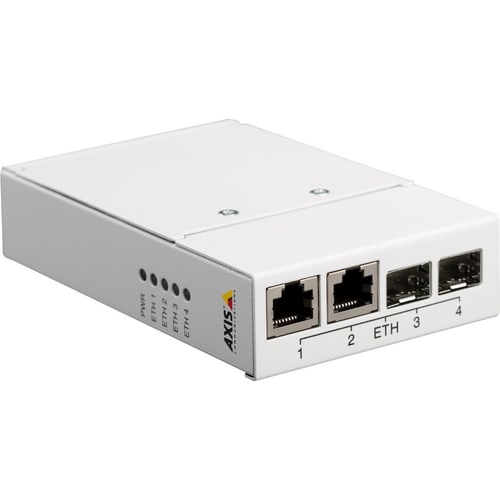

AXIS T8604 Media Converter Switch allows Axis video products to connect to the network using standard network or fiber optic cables that help lower the cost of installing the cameras over long distances.
Perfect for city surveillance, airports and other long distance installations, AXIS T8604 Media Converter Switch is a DIN-mounted device that can convert an Ethernet signal to be used over optical fiber cable. Fiber optic connections are typically used in surveillance installations where lightning strikes are a threat or great connection distances are required. Surveillance integrators in the field can also connect installation monitors and laptops to AXIS T8604 for camera maintenance and control.
- Expand your network capabilities with this 2 transceiver/media converter
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Technical Specifications
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Technology | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2 |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 5027-041 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | T8604 |
| Product Name | T8604 Media Converter Switch |
| Brand Name | AXIS |
| Physical Characteristics | |
| Weight (Approximate) | 10.08 oz (285.76 g) |
| Form Factor | Rail-mountable |
| Height | 1.18" (30 mm) |
| Width | 3.94" (100 mm) |
| Depth | 5.91" (150 mm) |
| Product Color | White |
| Color Family | White |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | Compliance:
Approvals:
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
