About the product

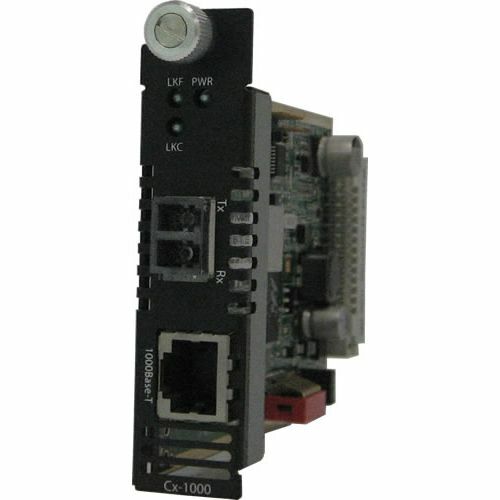

Installed in a high density Perle Media Converter Chassis, Perle's feature rich Managed Fast Ethernet Media Converter Modules transparently connect UTP copper to fiber. Our fast ethernet media converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.
- Expand your network capabilities with this 2 transceiver/media converter
- With 100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
- The Internal provides convenient installation
Technical Specifications
| Network & Communication | |
| Network Technology | 100Base-FX |
| 100Base-TX | |
| Physical Characteristics | |
| Weight (Approximate) | 149.7 g |
| Form Factor | Internal |
| Miscellaneous | |
| Compatibility | MCR1900 Media Converter Chassis |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 85/125 µm |
| 100/140 µm | |
| 50/125 µm | |
| 62.5/125 µm | |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05052220 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | CM-100-M2LC2 |
| Product Name | CM-100-M2LC2 Fast Ethernet Media Converter |
| Brand Name | Perle |
