About the product

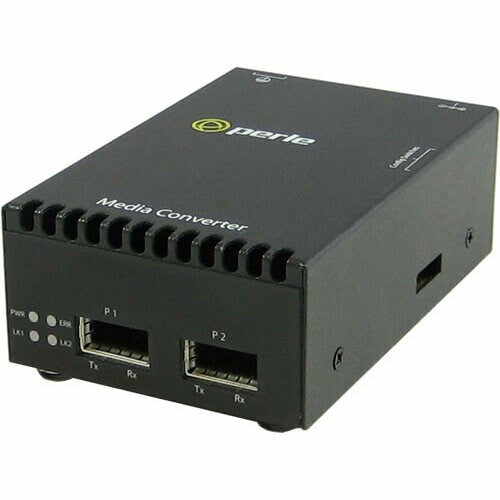

Perle S-10G Media Converters transparently connect 10 Gigabit Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with two pluggable transceiver ports that support fiber to fiber, copper to fiber or copper to copper media conversion.
Fiber to Fiber and Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
- With 10GBase-X technology get up to 10Gbps data transfer rate over supported network cable
- Tuck the device out of the way with its Wall Mounting feature
Technical Specifications
| Network & Communication | |
| Network Technology | 10GBase-X |
| Power Description | |
| Input Voltage | 12 V DC |
| I/O Expansions | |
| Expansion Slot Type | XFP |
| Number of XFP Slots | 2 |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05060544 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-10G-XTXH |
| Product Name | S-10G-XTXH Media Converter |
| Brand Name | Perle |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | IEEE Standards:
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 380 g |
| Form Factor | Desktop |
| Rack-mountable | |
| Rail-mountable | |
| Wall Mountable | |
| Height | 1.70" (43.18 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
