About the product

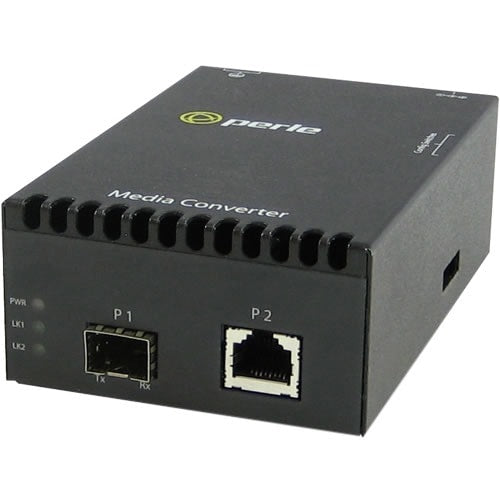

Perle S-10GT Media Converters transparently connect 10GBase-T Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with one RJ45 10GBase-T port and an empty slot for one SFP+ or XFP module. The S-10GRT additionally supports 10/100/1000/2500/10000 rate conversion.
Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
The empty transceiver ports on the S-10GT Media Converters allow for flexible network configurations to meet any requirement using a variety of 10G transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFP+ and XFPs. You can use these products to convert:
- 10GBase-T (RJ45) to SFP+
- 10GBase-T (RJ45) to XFP
- 1000Base-T (RJ45) to 1000Base-X (SFP)
- 10GBase-T (RJ45) to Direct Attach DAC copper twinax (SFP+)
- 10GBase-T (RJ45) to 10GBase-CX4 (XFP)
- 10/100/1000/2500/10000 Ethernet
Perle 10 Gigabit Ethernet to Fiber Converters provide an economical path to extend the distance of an existing 10GbE link. Network Administrators can "see-everything" with Perle's advanced features such as Smart Link Pass-Through, Fiber Fault Alert, a built-in Link Test capability and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-10GT Media Converters the smart choice for IT professionals. 10G Media Converters are also available for managed networks with AAA Security.
- Connect different types of media within a network with this single port
- With 10GBase-T technology get up to 10Gbps data transfer rate over twisted pair cable
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Technical Specifications
| Power Description | |
| Power Source | AC Adapter |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Network & Communication | |
| Network Technology | 10GBase-X |
| 10GBase-CX1 | |
| 10GBase-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05060614 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-10GRT-SFP |
| Product Name | S-10GRT-SFP - 10 Gigabit Media and Rate Converter |
| Brand Name | Perle |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 12.70 oz (360 g) |
| Form Factor | Wall Mountable |
| Rail-mountable | |
| Rack-mountable | |
| Height | 1.65" (42 mm) |
| Width | 4.72" (120 mm) |
| Depth | 3.15" (80 mm) |
