About the product

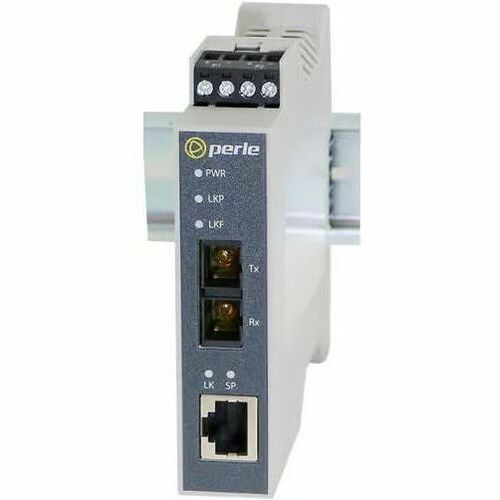

SRS-1110-FSC2- 10/100/1000 Industrial Media and Rate Converter: 10/100/1000BASE-T (RJ-45) [100 m/328 ft] to 100BASE-FX 1310nm multimode (SC) [2 km/1.2 miles]. Ruggedized to IEC 61850-3/IEEE 1613, -40F to +167F (-40C to +75C) extended operating temperature support. DIN Rail case, terminal block (Combicon) power connector for external power source.
Perle SRS-1110-F DIN Rail Media Converters transparently connect UTP CAT5/6/7 copper to Fast Ethernet dual fiber in electric utility and power substation environments. With an extended operating temperature range of -40C to +75C and advanced electrical certifications for IEC 61850-3, IEEE1613 and EN 61000-4-16, these fiber to Ethernet converters meet all requirements necessary to operate safely in the harsh electrical environments associated with power utility and substation deployments.
The SRS Media Converters are also designed to operate in hazardous industrial locations. With numerous certifications, (Hazloc: ATEX Class 1 Zone 2 / ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D) you are ensured safe and reliable operation in locations where volatile flammable gases, flammable liquid, produced vapors, or combustible liquid, are handled, processed, or used.
- Meet the multiple network connectivity needs of today's network environment with this 3 transceiver/media converter
- With 10/100/1000Base-T technology get up to 100Mbps data transfer rate over optical fiber cable
- The DIN Rail Mountable provides convenient installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Technical Specifications
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Power Description | |
| Plug/Connector Type | Terminal Block |
| Miscellaneous | |
| Application/Usage | Power |
| Certifications & Standards |
|
| Network & Communication | |
| Network Technology | 100Base-FX |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 2 |
| Total Number of Ports | 3 |
| Media & Performance | |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05092000 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SRS-1110-FSC2 |
| Product Name | SRS-1110-FSC2 Media Converter |
| Product Series | SRS-1110-F |
| Brand Name | Perle |
