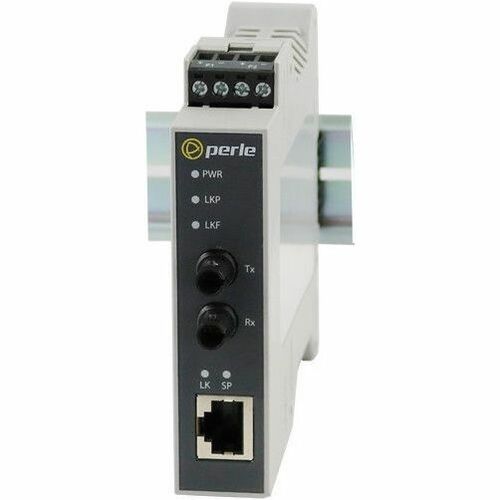

Perle Systems Perle SRS-1110

SRS-1110-FST20- 10/100/1000 Industrial Media and Rate Converter: 10/100/1000BASE-T (RJ-45) [100 m/328 ft] to 100Base-LX 1310nm single mode (ST) [20 km/12.4 miles]. Ruggedized to IEC 61850-3/IEEE 1613, -40F to +167F (-40C to +75C) extended operating temperature support. DIN Rail case, terminal block (Combicon) power connector for external power source.

Perle SRS-1110-F DIN Rail Media Converters transparently connect UTP CAT5/6/7 copper to Fast Ethernet dual fiber in electric utility and power substation environments. With an extended operating temperature range of -40C to +75C and advanced electrical certifications for IEC 61850-3, IEEE1613 and EN 61000-4-16, these fiber to Ethernet converters meet all requirements necessary to operate safely in the harsh electrical environments associated with power utility and substation deployments.

The SRS Media Converters are also designed to operate in hazardous industrial locations. With numerous certifications, (Hazloc: ATEX Class 1 Zone 2 / ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D) you are ensured safe and reliable operation in locations where volatile flammable gases, flammable liquid?produced vapors, or combustible liquid?produced vapors are handled, processed, or used.

• Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter
• With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
• The DIN Rail Mountable provides convenient installation
• With Twisted Pair cable, get the desired data transfer rate up to a required distance
