About the product

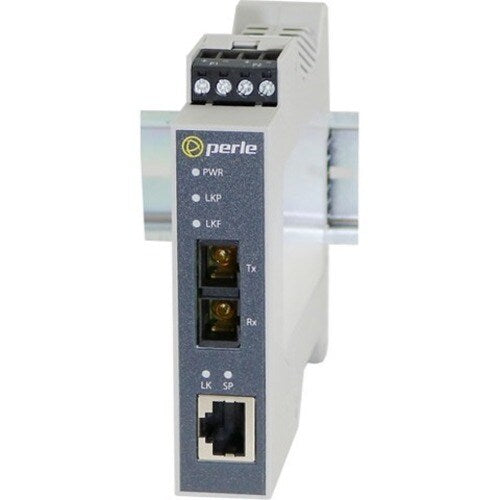

Perle SRS-1110-G DIN Rail Media Converters transparently connect UTP CAT5/6/7 copper to Gigabit dual or single fiber in electric utility and power substation environments. With an extended operating temperature range of -40C to +75C and advanced electrical certifications for IEC 61850-3, IEEE1613 and EN 61000-4-16, these fiber to Ethernet converters meet all requirements necessary to operate safely in the harsh electrical environments associated with power utility and substation deployments.
The SRS Media Converters are also designed to operate in hazardous industrial locations. With numerous certifications, including ATEX Class 1 Zone 2 and ANSI/ISA 12.12.01 Class 1 Division 2, you are ensured safe and reliable operation in locations where flammable gases, liquids or vapors are handled, processed or used.
- Extend the data transmission distance of IP-based devices by connecting their 10/100/1000Base-T copper interface to Gigabit fiber.
- Extend the distance of an existing industrial network by linking CAT5/6/7 cabling to multimode or single mode fiber.
- Extend the distance between two copper-based devices or networks
- Protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.
SRS-1110 Media Converters are also available with support for an SFP slot.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SRS-1110-G Rate Converting Media Converters the smart choice for IT professionals.
- 10/100/1000Base-T to 1000Base-X Fiber Media Converters
- Meets IEC 61850-3 & IEEE 1613 electric power substation environmental standards
- Class 1 Division 2 certified for hazardous locations
- Link copper to multimode or single mode fiber
- Dual fiber ST/SC or Single fiber SC connectors
- -40C to +75C (-40F to +167F) extended operating temperature
- Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
- Triple Power Input: Dual Terminal block power connector & T-Bus
Technical Specifications
| Power Description | |
| Power Source | AC Adapter |
| Network & Communication | |
| Network Technology | 1000Base-SX |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 2 |
| Total Number of Ports | 3 |
| SC Port Type | Duplex |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 4.23 oz (120 g) |
| Form Factor | Rail-mountable |
| Height | 0.89" (22.50 mm) |
| Width | 4.49" (114 mm) |
| Depth | 3.94" (100 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05092090 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SRS-1110-GSC05 |
| Product Name | SRS-1110-GSC05 Transceiver/Media Converter |
| Product Series | SRS-1110-G |
| Brand Name | Perle |
| Media & Performance | |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 100/140 µm |
| 62.5/125 µm | |
| 50/125 µm | |
| 85/125 µm | |
| Fiber Optic Cable Wavelength | 0.03 mil (0 mm) |
