About the product

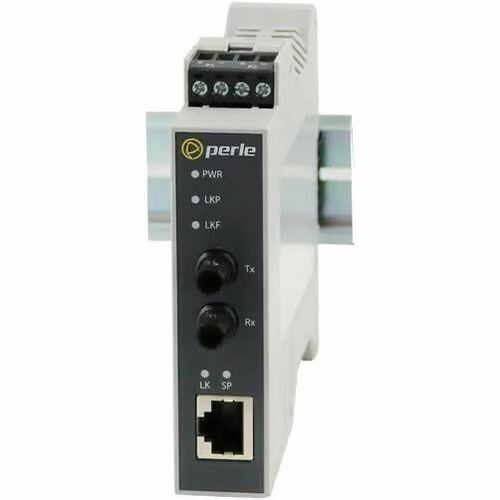

SRS-1110-GST05- 10/100/1000 Industrial Media Rate Converter: 10/100/1000BASE-T (RJ-45) [100 m/328 ft] to 1000BASE-SX 850nm multimode (ST) [550 m/1804 ft]. Ruggedized to IEC 61850-3/IEEE 1613, -40F to +167F (-40C to +75C) extended operating temperature support. DIN Rail case, terminal block (Combicon) power connector for external power source ..
Perle SRS-1110-G DIN Rail Media Converters transparently connect UTP CAT5/6/7 copper to Gigabit dual fiber in electric utility and power substation environments. With an extended operating temperature range of -40C to +75C and advanced electrical certifications for IEC 61850-3, IEEE1613 and EN 61000-4-16, these fiber to Ethernet converters meet all requirements necessary to operate safely in the harsh electrical environments associated with power utility and substation deployments.
The SRS Media Converters are also designed to operate in hazardous industrial locations. With numerous certifications, (Hazloc: ATEX Class 1 Zone 2 / ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D) you are ensured safe and reliable operation in locations where volatile flammable gases, flammable liquid?produced vapors, or combustible liquid?produced vapors are handled, processed, or used.
- 10/100/1000Base-T to 1000Base-X Fiber Media Converters
- Meets IEC 61850-3 & IEEE 1613 electric power substation environmental standards
- Class 1 Division 2 certified for hazardous locations
- Link copper to multimode or single mode fiber
- Dual fiber ST/SC or Single fiber SC connectors
- -40°C to +75°C (-40°F to +167°F) extended operating temperature
- Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
- Triple Power Input: Dual Terminal block power connector & T-Bus
Technical Specifications
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| 1000Base-SX | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | DC |
| Power Consumption | 2.16 W |
| Plug/Connector Type | Terminal Block |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 2 |
| Total Number of Ports | 3 |
| ST Port Type | Duplex |
| Miscellaneous | |
| Application/Usage | Power |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 4.23 oz (120 g) |
| Form Factor | DIN Rail Mountable |
| Height | 4.49" (114 mm) |
| Width | 0.89" (22.50 mm) |
| Depth | 3.94" (100 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05092100 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SRS-1110-GST05 |
| Product Name | SRS-1110-GST05 Media Converter |
| Product Series | SRS-1110-G |
| Brand Name | Perle |
| Media & Performance | |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| 85/125 µm | |
| 62.5/125 µm | |
| 100/140 µm | |
| Fiber Optic Cable Wavelength | 0.03 mil (0 mm) |
