Tripp Lite by Eaton N392B-30M-3X8AP Fiber Optic Trunk Network Cable - 98.4 ft (3

Tripp Lite by Eaton N392B-30M-3X8AP Fiber Optic Trunk Network Cable - 98.4 ft (3

Regular price $925.86 CAD
Regular price $1,036.96 CAD Sale price $925.86 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.

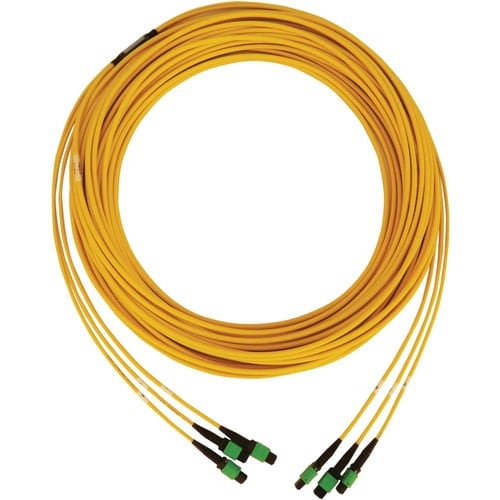

Tripp Lite by Eaton N392B-30M-3X8AP Fiber Optic Trunk Network Cable - 98.4 ft (30 m) Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 3 x MTP/MPO Network - Female - Second End: 3 x MTP/MPO Network - Female - 400 Gbit/s - Trunk Cable - LSZH - 9/125 µm

VPN:N392B-30M-3X8AP SKU:CB573736 CPU:37332272201

  • Features Bendable
  • Allows you to access all of the networked data, swiftly and securely
  • Features Fiber Optic cable type

Volume discount available - Ask for quote..

View full details

Recently Viewed

Tripp Lite by Eaton N392B-30M-3X8AP Fiber Optic Trunk Network Cable - 98.4 ft (3

Product information summary

Tripp Lite by Eaton N392B-30M-3X8AP Fiber Optic Trunk Network Cable - 98.4 ft (3

About the product

40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.

100% Tested for Low Insertion Loss and Back Reflection

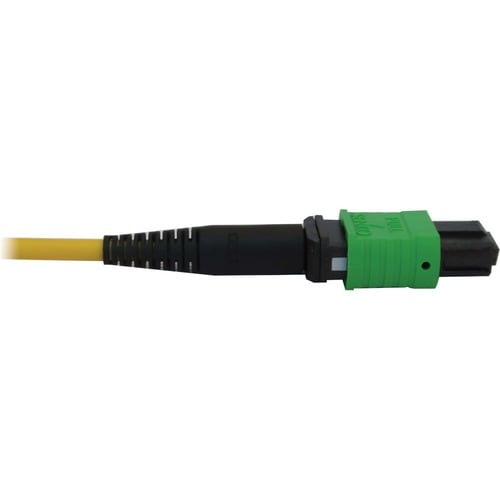

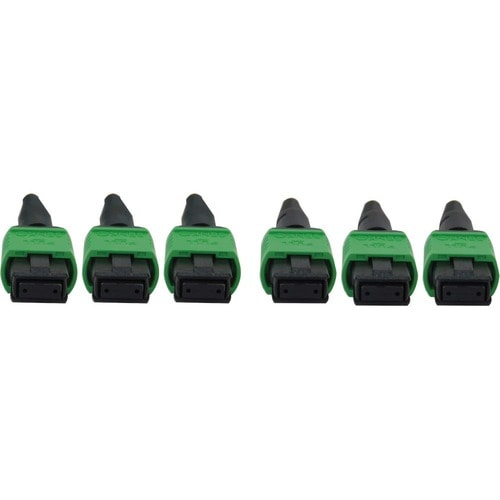

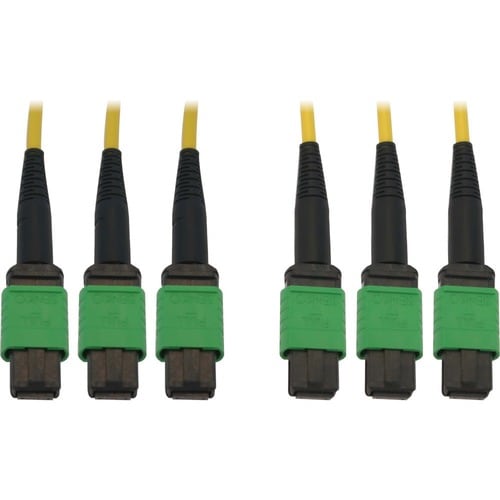

The factory-terminated 8-fiber MTP/MPO APC connectors help minimize back reflection with low insertion loss. The connector's slim boot and green housing allow easy one-handed installation and removal of the cable.

Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

  • Features Bendable
  • Allows you to access all of the networked data, swiftly and securely
  • Features Fiber Optic cable type

Technical Specifications

Miscellaneous
Country of OriginChina
Environmentally FriendlyYes
Physical Characteristics
Shipping Weight (Approximate)2.16 lb (979.76 g)
Shipping Height0.50" (12.70 mm)
Shipping Width10.50" (266.70 mm)
Jacket ColorYellow
Connector ColorGreen
Black
General Information
Product TypeNetwork Cable
Manufacturer Part NumberN392B30M3X8AP
Manufacturer Website Addresshttps://tripplite.eaton.com/
ManufacturerEaton Corporation
Product ModelN392B-30M-3X8AP
Product NameN392B-30M-3X8AP Fiber Optic Trunk Network Cable
Brand NameTripp Lite by Eaton
Technical Information
Cable Length98.4 ft (30 m)
Data Transfer Rate400 Gbit/s
Device SupportedNetwork Device
Switch
Patch Panel
Jacket TypeLSZH
FeaturesPush-Pull Tab
Angled Physical Contact (APC)
Bendable
Stranded
Cable CharacteristicTrunk Cable
Cable TypeFiber Optic
Connector Type on First EndMTP/MPO Network - Female
Connector Type on Second EndMTP/MPO Network - Female
Fiber Optic ModeSingle-mode
Connector on First End Details3 x MTP/MPO Network - Female
Connector on Second End Details3 x MTP/MPO Network - Female
Boot TypeSlim
Fiber Optic Cable Core/Cladding Specification9/125 µm
