About the product

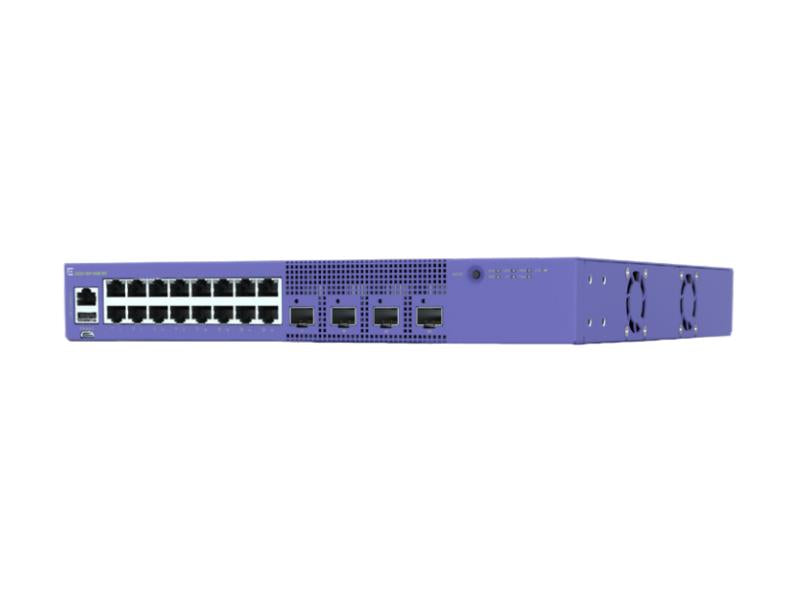

The 5320 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise. Compatible with a choice of Extremes flagship switch operating systems, the 5320 is a uniquely flexible platform that can be deployed across a range of edge and wiring-closet environments
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | 5320-16P-4XE |
| Form Factor: | 1RU |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 10 Gbps |
| Networking / Ports Qty: | 23 |
| Data Link Protocol: | Gigabit Ethernet |
| Networking Compliant Standards: | IEEE 802.3az, IEEE 802.3ae, IEEE 802.3ab, 802.3at |
| Power / Device Type: | Power Supply |
| Media Layer Supported: | Layer 2, Layer 3 |
| Power / Installed Qty: | 1 |
| Uplink Port: | 4 x 1/10Gb SFP+ uplink ports |
| Max Power Consumption: | 246 Watt |
| Features: | Audio Video Bridging;Cloud-Based Network Management;Ethernet Fabric Services;Silent Operation;Universal Hardware Platform |
| Network | |
| Power Over Ethernet (PoE) Support: | YES |
| PoE Power Consumption: | 185W |
| MAC Address Table Size: | 32000 |
| Remote Management Protocol: | VLAN |
| Routing Protocol: | IPv4/IPv6 |
| Encryption Algorithm: | MACsec |
| 10/100/1000BASE-T Ports: | 16 |
| SFP+ Ports: | 4 |
| Interfaces: | 16 x 10/100/1000BASE-T 802.3at (30W) ports;4 x 1/10Gb SFP+ uplink ports (includes 2 x Stacking ports);1 x Serial console port (RJ-45);1 x USB A ports for management or external USB flash;1 x USB Micro-B console port |
| Interfaces / Ports | |
| Interfaces: | 16 x 10/100/1000BASE-T 802.3at (30W) ports;4 x 1/10Gb SFP+ uplink ports (includes 2 x Stacking ports);1 x Serial console port (RJ-45);1 x USB A ports for management or external USB flash;1 x USB Micro-B console port |
| 10/100/1000BASE-T Ports: | 16 |
| SFP+ Ports: | 4 |
| Dimensions&Miscellaneous | |
| Width: | 12.2 Inch |
| Depth: | 11.8 Inch |
| Height: | 1.7 Inch |
| Weight: | 3 Kg |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 50 Celsius |
| Min Storage Temperature: | -40 Celsius |
| Max Storage Temperature: | 70 Celsius |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
