About the product

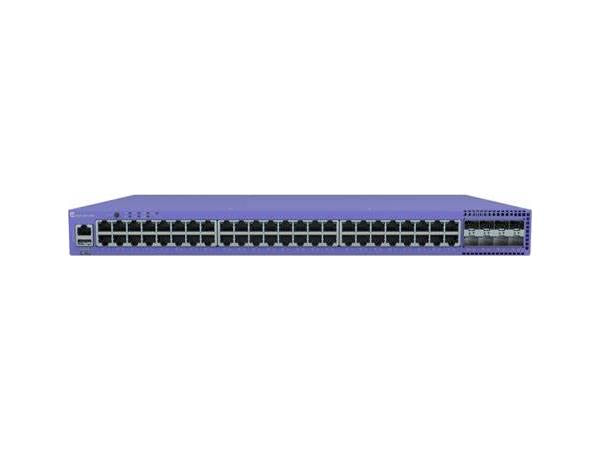

The 5320 Series is a family of high-performance, feature-rich edge switches designed for the next-generation digital enterprise.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | 5320-48P-8XE |
| Form Factor: | 1RU |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 10 Gbps |
| Networking / Ports Qty: | 59 |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Type: | None Processor |
| RAM / Total Installed Size: | None GB |
| Flash Memory / Installed Size: | None GB |
| Networking Compliant Standards: | IEEE 802.3ab,IEEE 802.3at,IEEE 802.3ae,IEEE 802.3az |
| Media Layer Supported: | Layer 3 |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 924 Watt |
| Features: | 40Gb per unit stacking of up to eight switches.Secure link encryption with MACsec across both access and uplink ports. |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| PoE Power Consumption: | 740W |
| MAC Address Table Size: | 32000 |
| Remote Management Protocol: | IPv6; IPv4 |
| 10/100/1000BASE-T Ports: | 48 |
| SFP+ Ports: | 8 |
| Interfaces: | 48 x 10/100/1000BASE-T 802.3at (30W) ports, 8 x 1/10Gb SFP+ uplink ports (includes 2 x Stacking ports), 1 x Serial console port (RJ-45), 1 x USB A ports for management or external USB flash, 1 x USB Micro-B console port |
| Interfaces / Ports | |
| Interfaces: | 48 x 10/100/1000BASE-T 802.3at (30W) ports, 8 x 1/10Gb SFP+ uplink ports (includes 2 x Stacking ports), 1 x Serial console port (RJ-45), 1 x USB A ports for management or external USB flash, 1 x USB Micro-B console port |
| 10/100/1000BASE-T Ports: | 48 |
| SFP+ Ports: | 8 |
| Dimensions&Miscellaneous | |
| Width: | 17.3 Inch |
| Depth: | 13 Inch |
| Height: | 1.7 Inch |
| Weight: | 5 Kg |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 50 Celsius |
| Min Storage Temperature: | -40 Celsius |
| Max Storage Temperature: | 70 Celsius |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
