About the product

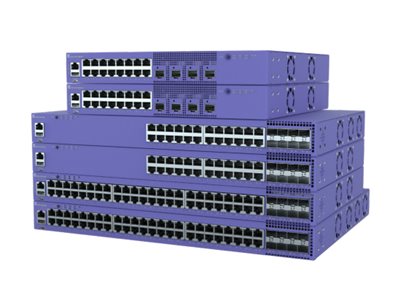

The 5320 supports a variety of Ethernet Fabric services, including Extremes Fabric Connect and IP Fabric. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 Fabric Services. Extremes Fabric Connect on the 5320 enables the creation of virtualized networks that automate network operations, simplify network provisioning and enhance security, all while reducing the strain on network and IT personnel.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | 5320 |
| Form Factor: | SFP |
| Connectivity Technology: | Wired |
| Networking / Ports Qty: | 56 |
| Data Link Protocol: | Ethernet |
| Power Consumption Operational: | 25 Watt |
| Max Power Consumption: | 64 Watt |
| Features: | The 5320 also supports high-speed stacking via its two built-in SFP+ stacking ports. Up to eight systems can be stacked using qualified 10Gb SFP+ direct attach cables and optical transceivers. |
| Interfaces / Ports | |
| Interfaces: | 48 x 10/100/1000Base-T ports - Full/Half-Duplex (autosensing) - MACsec-capable8 x 1Gb SFP uplink ports (includes 2 x Stacking ports @ 10Gb) Can be upgraded to 10Gb SFP+ via software license MACsec-capable 100Mb operation supported on last 4 uplink ports1 x Serial console port (RJ-45) 1 x USB A ports for management or external USB flash1 x USB Micro-B console port |
| 10/100/1000BASE-T Ports: | 48 |
| SFP Ports: | 8 |
| Network | |
| 10/100/1000BASE-T Ports: | 48 |
| SFP Ports: | 8 |
| Interfaces: | 48 x 10/100/1000Base-T ports - Full/Half-Duplex (autosensing) - MACsec-capable8 x 1Gb SFP uplink ports (includes 2 x Stacking ports @ 10Gb) Can be upgraded to 10Gb SFP+ via software license MACsec-capable 100Mb operation supported on last 4 uplink ports1 x Serial console port (RJ-45) 1 x USB A ports for management or external USB flash1 x USB Micro-B console port |
| Dimensions&Miscellaneous | |
| Width: | 17.3 Inch |
| Depth: | 11 Inch |
| Height: | 1.7 Inch |
| Weight: | 4.2 Kg |
| Service&Support | |
| Service & Support Type: | 1 year ExtremeCloud IQ Pilot subscription |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
