About the product

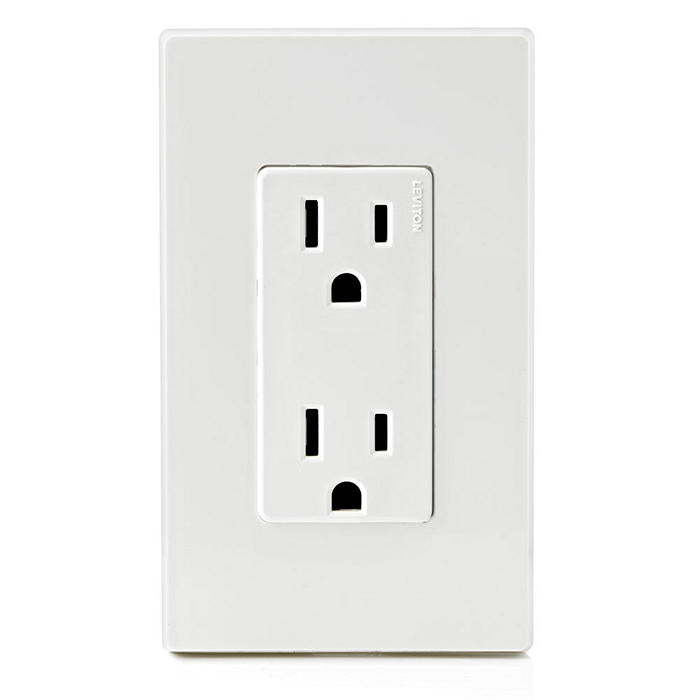

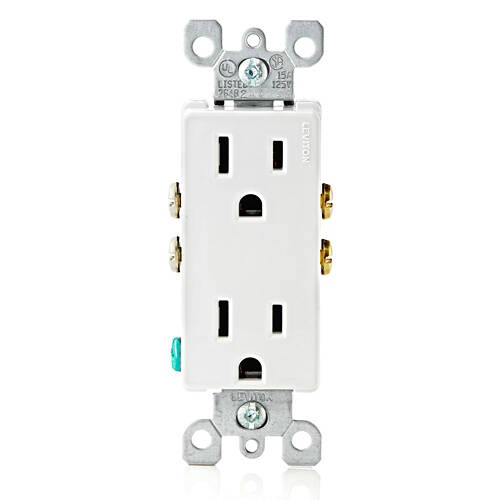

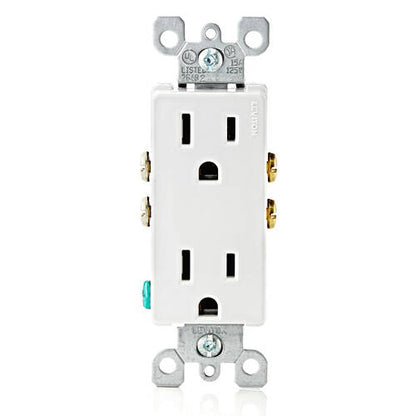

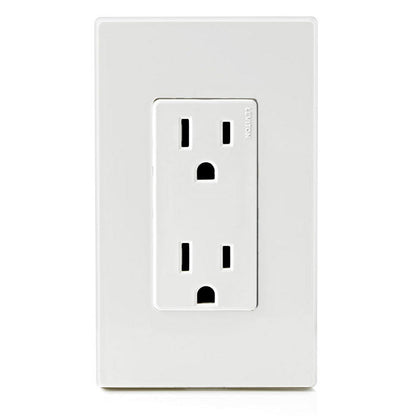

Leviton’s Decora Quickwire AC Receptacle is a standard 15A, 125-volt receptacle designed for a 2-pole, 3-wire installation. Easy push-in wiring and side wiring terminals simplify installation. Fits in standard wallbox, designed for use with Decora wallplates (wall plate sold separately).
5325-W Specs and Features
- Amperage : 15 A
- Voltage : 125 VAC
- Wiring: 3 wire
- Grounding : Grounding
- Terminal Accom. : 14-12 AWG
- Terminal ID : Brass-Hot, Green-Ground, White-Neutral
- Torque Range : 14 – 18 in.-lbs
- Body Material : Thermoplastic
- Color : White
- Face Material : Thermoplastic
- Ground Clips : Brass-Plated
- Grounding Screw : Steel 8-32
- Strap Material : Steel
- Terminal Screws : Brass
- NEMA : 5-15R
- Pole : 2
- Strap Material : Steel
- Terminal Accom. : Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only.
- Termination : Quickwire Push-In & Side
- Type : Duplex Receptacle
- Warranty : 2-Year Limited
- CSA C22.2 No. 42 : File 152105; Class 6233-01
- NOM : NOM Certified
- NOM Certified : 057
- UL 498 : File E13399
- UL Listed : File E-13399
Technical Specifications
Leviton’s Decora Quickwire AC Receptacle is a standard 15A, 125-volt receptacle designed for a 2-pole, 3-wire installation. Easy push-in wiring and side wiring terminals simplify installation. Fits in standard wallbox, designed for use with Decora wallplates (wall plate sold separately).
5325-W Specs and Features
- Amperage : 15 A
- Voltage : 125 VAC
- Wiring: 3 wire
- Grounding : Grounding
- Terminal Accom. : 14-12 AWG
- Terminal ID : Brass-Hot, Green-Ground, White-Neutral
- Torque Range : 14 – 18 in.-lbs
- Body Material : Thermoplastic
- Color : White
- Face Material : Thermoplastic
- Ground Clips : Brass-Plated
- Grounding Screw : Steel 8-32
- Strap Material : Steel
- Terminal Screws : Brass
- NEMA : 5-15R
- Pole : 2
- Strap Material : Steel
- Terminal Accom. : Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only.
- Termination : Quickwire Push-In & Side
- Type : Duplex Receptacle
- Warranty : 2-Year Limited
- CSA C22.2 No. 42 : File 152105; Class 6233-01
- NOM : NOM Certified
- NOM Certified : 057
- UL 498 : File E13399
- UL Listed : File E-13399
