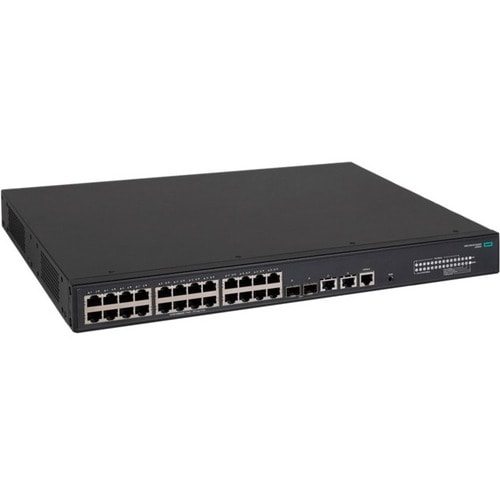

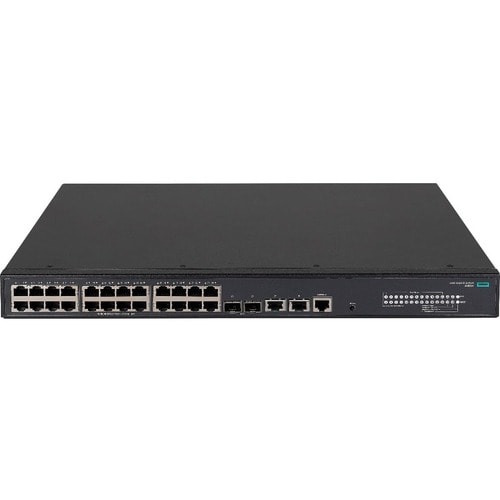

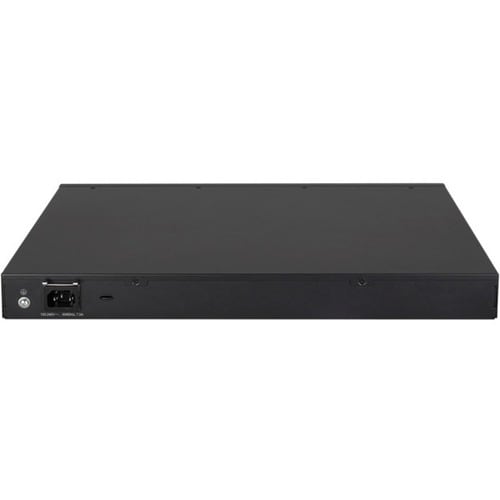

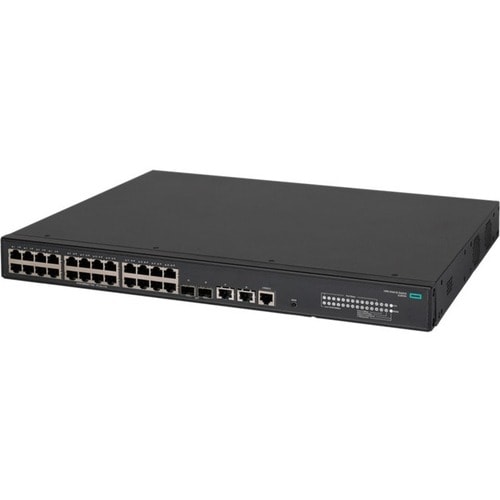

HPE FlexNetwork 5140 EI Switch Series
The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet.
Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers.
High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 26 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 26 ports
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Miscellaneous | |
| Application/Usage | Data Center |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 26 |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| 24 x Gigabit Ethernet PoE+ | |
| 2 x 10 Gigabit Ethernet Network | |
| Media & Performance | |
| Network Technology | 10GBase-T |
| 10/100/1000Base-T | |
| 10GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | JL823A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 5140 24G PoE+ 2SFP+ 2XGT EI |
| Product Name | FlexNetwork 5140 24G PoE+2SFP+2XGT EI Switch |
| Product Line | FlexNetwork |
| Product Series | 5140 EI |
| Brand Name | HPE |
| Physical Characteristics | |
| Weight (Approximate) | 9.92 lb (4499.64 g) |
| Form Factor | Rack-mountable |
| Cabinet Mount | |
| Height | 1.72" (43.69 mm) |
| Width | 17.32" (439.93 mm) |
| Depth | 12.60" (320.04 mm) |
| Compatible Rack Unit | 1U |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 24.50 W |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 370 W |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1p |
| IEEE 802.3z | |
| IEEE 802.3x | |
| IEEE 802.3u | |
| IEEE 802.3i | |
| IEEE 802.3az | |
| IEEE 802.3at | |
| IEEE 802.3ah | |
| IEEE 802.1D | |
| IEEE 802.1ak | |
| IEEE 802.1ad | |
| IEEE 802.1ab | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ac | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3af |
